1. Single locus

mclumi.onepos is a module used for deduplicating UMIs observed at a single genomic locus or a single gene.

Usage

The mclumi.onepos module can be used in Python and Shell.

1. Python

1.1 Command

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
import mclumi as mu

df_mcl = mu.onepos.mcl(
    bam_fpn=to('data/example_bundle.bam'),
    ed_thres=1,
    work_dir=to('data/'),
    verbose=False,  # False True

    heterogeneity=False,  # False True

    inflat_val=1.6,
    exp_val=2,
    iter_num=100,
)

print(df_mcl)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
import mclumi as mu

df_mcl_val = mu.onepos.mcl_val(
    bam_fpn=to('data/example_bundle.bam'),
    ed_thres=1,
    work_dir=to('data/'),
    verbose=False,  # False True

    heterogeneity=False,  # False True

    mcl_fold_thres=1.5,
    inflat_val=1.6,
    exp_val=2,
    iter_num=100,
)

print(df_mcl_val)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
import mclumi as mu

df_mcl_ed = mu.onepos.mcl_ed(
    bam_fpn=to('data/example_bundle.bam'),
    ed_thres=1,
    work_dir=to('data/'),
    verbose=False,  # False True

    heterogeneity=False,  # False True

    mcl_fold_thres=1.5,
    inflat_val=1.6,
    exp_val=2,
    iter_num=100,
)

print(df_mcl_ed)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
import mclumi as mu

df_unique = mu.onepos.unique(
    bam_fpn=to('data/example_bundle.bam'),
    ed_thres=1,
    work_dir=to('data/'),
    verbose=False,  # False True

    heterogeneity=False,  # False True
)

print(df_unique)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
import mclumi as mu

df_cluster = mu.onepos.cluster(
    bam_fpn=to('data/example_bundle.bam'),
    ed_thres=1,
    work_dir=to('data/'),
    verbose=False,  # False True

    heterogeneity=False,  # False True
)

print(df_cluster)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
import mclumi as mu

df_adjacency = mu.onepos.adjacency(
    bam_fpn=to('data/example_bundle.bam'),
    ed_thres=1,
    work_dir=to('data/'),
    verbose=False,  # False True

    heterogeneity=False,  # False True
)

print(df_adjacency)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
import mclumi as mu

df_directional = mu.onepos.directional(
    bam_fpn=to('data/example_bundle.bam'),
    ed_thres=1,
    work_dir=to('data/'),
    verbose=False,  # False True

    heterogeneity=False,  # False True
)

print(df_directional)

1.2 Attributes in the YAML file

Illustration

Attribute Description
ed_thres edit distance
bam_fpn input file in the BAM format
heterogeneity mode to indicate if studying trajectories of UMI origins and copies/derivatives across a series of PCR amplication cycles. If heterogeneity is set to True, users will gain more statistics and files in the final output directory
inflat_val inflation parameter of the Markov Clustering algorithm
exp_val expansion parameter of the Markov Clustering algorithm
iter_num number of interations for the Markov Clustering algorithm to converge
mcl_fold_thres a fold change threshold for MCL at a range of (1, l) where l is the length of a UMI. This parameter is placed when the mcl_ed or mcl_val function is used.
verbose whether to print intermediate results

2. Shell

2.1 Command

The shell command is simplified, but more parameters should be specified in a YAML file, params.yml in order to reduce complexity but optimise future extension.

1
2
3
4
5
6
7
mclumi locus \
-m mcl \
-ed 1  \
-pfpn ./mclumi/data/params.yml \
-bfpn ./mclumi/data/example_bundle.bam \
-wd ./mclumi/data/ \
-vb True

2.2 Attributes in the command

Illustration

Attribute Description
-m UMI deduplication method
-ed edit distance
-pfpn YAML parameter file. Please see the YAML tab for parameter details
-bfpn input file in the BAM format
-wd working directory
-vb whether to print intermediate results

2.3 YAML file configuration

work_dir: /mnt/d/Document/Programming/Python/mclumi/mclumi/data/

# bam_fpn: /mnt/d/Document/Programming/Python/mclumi/mclumi/data/example_bundle.bam

umi:
  ed_thres: 1

dedup:
  # mcl_val
  mcl_fold_thres: 1.
  inflat_val: 1.1
  exp_val: 2
  iter_num: 100

  # mcl_ed
  mcl_fold_thres: 1.6
  inflat_val: 1.1
  exp_val: 2
  iter_num: 100

2.4 Attributes in the YAML file

Illustration

Attribute Description
work_dir working directory
ed_thres edit distance
inflat_val inflation parameter of the Markov Clustering algorithm
exp_val expansion parameter of the Markov Clustering algorithm
iter_num number of interations for the Markov Clustering algorithm to converge
mcl_fold_thres a fold change threshold for MCL at a range of (1, l) where l is the length of a UMI. This parameter is placed when the mcl_ed or mcl_val function is used.

Output

1. Console

                   ____  ____  _______
   ____ ___  _____/ / / / /  |/  /  _/
  / __ `__ \/ ___/ / / / / /|_/ // /
 / / / / / / /__/ / /_/ / /  / // /
/_/ /_/ /_/\___/_/\____/_/  /_/___/


26/07/2024 18:49:19 logger: ===>You are using method MCL to deduplicate UMIs observed at a genomic loci.
26/07/2024 18:49:19 logger: ===>reading the bam file... /mnt/d/Document/Programming/Python/mclumi/mclumi/data/example_bundle.bam
26/07/2024 18:49:19 logger: ===>reading BAM time: 0.00s
26/07/2024 18:49:19 logger: =========>start converting bam to df...
26/07/2024 18:49:27 logger: =========>time to df: 7.235s
26/07/2024 18:49:27 logger: ======># of raw reads: 1175027
26/07/2024 18:49:27 logger: ======># of reads with qualified chrs: 1175027
26/07/2024 18:49:27 logger: ======># of unique umis: 1949
26/07/2024 18:49:27 logger: ======># of redundant umis: 1175027
26/07/2024 18:49:27 logger: ======>edit distance thres: 1
26/07/2024 18:49:27 logger: ======># of columns in the bam df: 14
26/07/2024 18:49:27 logger: ======>Columns in the bam df: ['id', 'query_name', 'flag', 'reference_id', 'genome_pos', 'mapping_quality', 'cigar', 'query_sequence', 'next_reference_id', 'next_reference_start', 'query_qualities', 'read', 'umi', 'source']
26/07/2024 18:49:27 logger: ======># of raw reads:
              id                     query_name  ...        umi  source
0              0  SRR2057595.11715337_ACCGGTTTA  ...  ACCGGTTTA       1
1              1  SRR2057595.11715337_ACCGGTTTA  ...  ACCGGTTTA       1
2              2  SRR2057595.11715337_ACCGGTTTA  ...  ACCGGTTTA       1
3              3  SRR2057595.11715337_ACCGGTTTA  ...  ACCGGTTTA       1
4              4  SRR2057595.11715337_ACCGGTTTA  ...  ACCGGTTTA       1
...          ...                            ...  ...        ...     ...
1175022  1175022   SRR2057595.8512200_ACCGGTTGG  ...  ACCGGTTGG       1
1175023  1175023   SRR2057595.8512200_ACCGGTTGG  ...  ACCGGTTGG       1
1175024  1175024   SRR2057595.8512200_ACCGGTTGG  ...  ACCGGTTGG       1
1175025  1175025   SRR2057595.8512200_ACCGGTTGG  ...  ACCGGTTGG       1
1175026  1175026   SRR2057595.8512200_ACCGGTTGG  ...  ACCGGTTGG       1

[1175027 rows x 14 columns]
26/07/2024 18:49:27 logger: ===>start building umi graphs...
26/07/2024 18:49:31 logger: ===>time for building umi graphs: 3.99s
1    {0: [0, 77, 97, 153, 239, 433, 518, 562, 930, ...
Name: mcl, dtype: object
===>Analysis has been complete and results have been saved!
                                            vignette  ...                                        mcl_bam_ids
1  {'graph_adj': {0: [77, 81, 97, 153, 205, 228, ...  ...  [1980, 45509, 93558, 17999, 50319, 3664, 44368...

[1 rows x 12 columns]

2. Understanding results

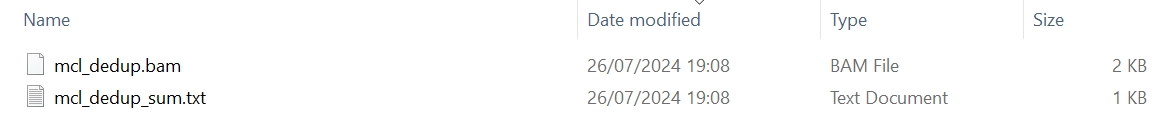

After running, the generated files are shown in the following screenshot.

Image title
Fig 1. Generated files with MCL

In the output directory, there are two files:

Annotation

  • {method}_dedup_sum.txt - deduplicated UMI counts across all reads in the newly generated bam file.
  • {method}_dedup.bam - in which the deduplicated reads will be stored.

Statistics provided in file mcl_dedup_sum.txt are tabulated as follow:

index {method}_umi_len ave_eds uniq_umi_len dedup_uniq_diff_pos dedup_read_diff_pos
1 44 5.0 1949 1905 1116981

Annotation

  • the 1st column - the given locus.
  • the 2nd column - deduplicated UMI counts (corresponding to the number of DNA molecules/transcripts) at the given locus.
  • the 3rd column - average edit distances between UMIs at the given locus.
  • the 4th column - unique UMI counts at the given locus.
  • the 5th column - difference in dedup UMI counts and original unique UMI counts.
  • the 6th column - difference in the number of dedup reads and original reads.
