2. Multiple loci

mclumi.multipos is a module used for deduplicating UMIs observed at multiple genomic positions/loci or multiple genes.

Usage

The mclumi.multipos module can be used in Python and Shell.

1. Python

1.1 Command

MCLMCL-valMCL-edUniqueClusterAdjacencyDirectional

import mclumi as mu

df_mcl = mu.multipos.mcl(
    bam_fpn=to('data/example_bundle.bam'),
    ed_thres=1,
    pos_tag='PO',
    work_dir=to('data/'),
    verbose=False,  # False True

    heterogeneity=False,  # False True

    inflat_val=1.6,
    exp_val=2,
    iter_num=100,
)

print(df_mcl)

import mclumi as mu

df_mcl_val = mu.multipos.mcl_val(
    bam_fpn=to('data/example_bundle.bam'),
    ed_thres=1,
    pos_tag='PO',
    work_dir=to('data/'),
    verbose=False,  # False True

    heterogeneity=False,  # False True

    mcl_fold_thres=1.5,
    inflat_val=1.6,
    exp_val=2,
    iter_num=100,
)

print(df_mcl_val)

import mclumi as mu

df_mcl_ed = mu.multipos.mcl_ed(
    bam_fpn=to('data/example_bundle.bam'),
    ed_thres=1,
    pos_tag='PO',
    work_dir=to('data/'),
    verbose=False,  # False True

    heterogeneity=False,  # False True

    mcl_fold_thres=1.5,
    inflat_val=1.6,
    exp_val=2,
    iter_num=100,
)

print(df_mcl_ed)

import mclumi as mu

df_unique = mu.multipos.unique(
    bam_fpn=to('data/example_bundle.bam'),
    ed_thres=1,
    pos_tag='PO',
    work_dir=to('data/'),
    verbose=False,  # False True

    heterogeneity=False,  # False True
)
print(df_unique)

import mclumi as mu

df_cluster = mu.multipos.cluster(
    bam_fpn=to('data/example_bundle.bam'),
    ed_thres=1,
    pos_tag='PO',
    work_dir=to('data/'),
    verbose=False,  # False True

    heterogeneity=False,  # False True
)
print(df_cluster)

import mclumi as mu

df_adjacency = mu.multipos.adjacency(
    bam_fpn=to('data/example_bundle.bam'),
    ed_thres=1,
    pos_tag='PO',
    work_dir=to('data/'),
    verbose=False,  # False True

    heterogeneity=False,  # False True
)
print(df_adjacency)

import mclumi as mu

df_directional = mu.multipos.directional(
    bam_fpn=to('data/example_bundle.bam'),
    ed_thres=1,
    pos_tag='PO',
    work_dir=to('data/'),
    verbose=False,  # False True

    heterogeneity=False,  # False True
)
print(df_directional)

1.2 Attributes in the YAML file

Illustration

Attribute	Description
ed_thres	edit distance
pos_tag	the tag to denote from which genomic position/locus a read is observed. For example, mclumi.prep.umi_tools function outputs reads whose positions are tagged with PO
bam_fpn	input file in the BAM format
heterogeneity	mode to indicate if studying trajectories of UMI origins and copies/derivatives across a series of PCR amplication cycles. If heterogeneity is set to True, users will gain more statistics and files in the final output directory
inflat_val	inflation parameter of the Markov Clustering algorithm
exp_val	expansion parameter of the Markov Clustering algorithm
iter_num	number of interations for the Markov Clustering algorithm to converge
mcl_fold_thres	a fold change threshold for MCL at a range of (1, l) where l is the length of a UMI. This parameter is placed when the mcl_ed or mcl_val function is used.
verbose	whether to print intermediate results

2. Shell

2.1 Command

The shell command is simplified, but more parameters should be specified in a YAML file, params.yml in order to reduce complexity but optimise future extension.

mclumi loci \
-m mcl \
-ed 1  \
-pfpn ./mclumi/data/params.yml \
-bfpn ./mclumi/data/example_bundle.bam \
-wd ./mclumi/data/ \
-vb True

2.2 Attributes in the command

Illustration

Attribute	Description
-m	UMI deduplication method
-ed	edit distance
-pfpn	YAML parameter file. Please see the YAML tab for parameter details
-bfpn	input file in the BAM format
-wd	working directory
-vb	whether to print intermediate results

2.3 YAML file configuration

work_dir: /mnt/d/Document/Programming/Python/mclumi/mclumi/data/

# bam_fpn: /mnt/d/Document/Programming/Python/mclumi/mclumi/data/example_bundle.bam

tag:
  # loci
  pos_tag: PO

umi:
  ed_thres: 1

dedup:
  # mcl_val
  mcl_fold_thres: 1.
  inflat_val: 1.1
  exp_val: 2
  iter_num: 100

  # mcl_ed
  mcl_fold_thres: 1.6
  inflat_val: 1.1
  exp_val: 2
  iter_num: 100

2.4 Attributes in the YAML file

Illustration

Attribute	Description
work_dir	working directory
ed_thres	edit distance
pos_tag	the tag to denote from which genomic position/locus a read is observed. For example, mclumi.prep.umi_tools function outputs reads whose positions are tagged with PO
inflat_val	inflation parameter of the Markov Clustering algorithm
exp_val	expansion parameter of the Markov Clustering algorithm
iter_num	number of interations for the Markov Clustering algorithm to converge
mcl_fold_thres	a fold change threshold for MCL at a range of (1, l) where l is the length of a UMI. This parameter is placed when the mcl_ed or mcl_val function is used.

Output

1. Console

                   ____  ____  _______
   ____ ___  _____/ / / / /  |/  /  _/
  / __ `__ \/ ___/ / / / / /|_/ // /
 / / / / / / /__/ / /_/ / /  / // /
/_/ /_/ /_/\___/_/\____/_/  /_/___/


26/07/2024 16:47:09 logger: ===>You are using method MCL to deduplicate UMIs observed at multiple genomic loci.
26/07/2024 16:47:09 logger: ===>reading the bam file... /mnt/d/Document/Programming/Python/mclumi/mclumi/data/example_bundle.bam
26/07/2024 16:47:09 logger: ===>reading BAM time: 0.00s
26/07/2024 16:47:09 logger: =========>start converting bam to df...
26/07/2024 16:47:17 logger: =========>time to df: 7.347s
26/07/2024 16:47:17 logger: ======># of raw reads: 1175027
26/07/2024 16:47:17 logger: ======># of reads with qualified chrs: 1175027
26/07/2024 16:47:17 logger: ======># of unique umis: 1949
26/07/2024 16:47:17 logger: ======># of redundant umis: 1175027
26/07/2024 16:47:17 logger: ======>edit distance thres: 1
26/07/2024 16:47:17 logger: ======># of columns in the bam df: 14
26/07/2024 16:47:17 logger: ======>Columns in the bam df: ['id', 'query_name', 'flag', 'reference_id', 'genome_pos', 'mapping_quality', 'cigar', 'query_sequence', 'next_reference_id', 'next_reference_start', 'query_qualities', 'read', 'PO', 'umi']
26/07/2024 16:47:17 logger: ======># of raw reads:
              id                     query_name  ...     PO        umi
0              0  SRR2057595.11715337_ACCGGTTTA  ...      0  ACCGGTTTA
1              1  SRR2057595.11715337_ACCGGTTTA  ...      0  ACCGGTTTA
2              2  SRR2057595.11715337_ACCGGTTTA  ...      0  ACCGGTTTA
3              3  SRR2057595.11715337_ACCGGTTTA  ...      0  ACCGGTTTA
4              4  SRR2057595.11715337_ACCGGTTTA  ...      0  ACCGGTTTA
...          ...                            ...  ...    ...        ...
1175022  1175022   SRR2057595.8512200_ACCGGTTGG  ...  12046  ACCGGTTGG
1175023  1175023   SRR2057595.8512200_ACCGGTTGG  ...  12046  ACCGGTTGG
1175024  1175024   SRR2057595.8512200_ACCGGTTGG  ...  12046  ACCGGTTGG
1175025  1175025   SRR2057595.8512200_ACCGGTTGG  ...  12046  ACCGGTTGG
1175026  1175026   SRR2057595.8512200_ACCGGTTGG  ...  12046  ACCGGTTGG

[1175027 rows x 14 columns]
26/07/2024 16:47:17 logger: ===>start building umi graphs...
26/07/2024 16:47:36 logger: ===>time for building umi graphs: 18.15s
0                           {0: [0]}
1                           {0: [0]}
2                           {0: [0]}
3                        {0: [0, 1]}
4                           {0: [0]}
                    ...
12042                       {0: [0]}
12043                       {0: [0]}
12044    {0: [0], 1: [1], 2: [2, 3]}
12045            {0: [0, 1], 1: [2]}
12046               {0: [0], 1: [1]}
Name: mcl, Length: 12047, dtype: object
===>Analysis has been complete and results have been saved!
                                                vignette  ...                  mcl_bam_ids
0      {'graph_adj': {0: []}, 'int_to_umi_dict': {0: ...  ...                          [0]
1      {'graph_adj': {0: []}, 'int_to_umi_dict': {0: ...  ...                         [74]
2      {'graph_adj': {0: []}, 'int_to_umi_dict': {0: ...  ...                         [75]
3      {'graph_adj': {0: [1], 1: [0]}, 'int_to_umi_di...  ...                         [76]
4      {'graph_adj': {0: []}, 'int_to_umi_dict': {0: ...  ...                        [351]
...                                                  ...  ...                          ...
12042  {'graph_adj': {0: []}, 'int_to_umi_dict': {0: ...  ...                    [1174155]
12043  {'graph_adj': {0: []}, 'int_to_umi_dict': {0: ...  ...                    [1174641]
12044  {'graph_adj': {0: [], 1: [], 2: [3], 3: [2]}, ...  ...  [1174642, 1174712, 1174760]
12045  {'graph_adj': {0: [1], 1: [0], 2: []}, 'int_to...  ...           [1174888, 1175019]
12046  {'graph_adj': {0: [], 1: []}, 'int_to_umi_dict...  ...           [1175021, 1175022]

[12047 rows x 12 columns]

2. Understanding results

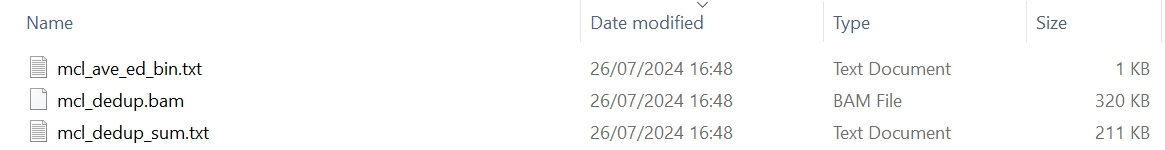

After running, the generated files are shown in the following screenshot.

Fig 1. Generated files with MCL

In the output directory, there are three files:

Annotation

• {method}_ave_ed_pos_bin.txt - in which UMI count summary results will be stored, indicating observed UMIs under multiple genomic positions/loci.
• {method}_dedup_sum.txt - deduplicated UMI counts across all reads in the newly generated bam file.
• {method}_dedup.bam - in which the deduplicated reads will be stored.

Statistics provided in file mcl_ave_ed_pos_bin.txt are tabulated as follow:

ave_eds	count
-1.0	10470
2.0	162
3.0	206
...	...

Annotation

• the 1st column - average edit distance between UMIs at genomic positions.
• the 2nd column - number of reads tagged with UMIs observed in that edit distance.
• * -1.0 in column edit distance represents that only one unique umi seen at a single genomic position; in total there are 10470 genomic positions seen with one unique umi.

Statistics provided in file mcl_dedup_sum.txt are tabulated as follow:

index	{method}_umi_len	ave_eds	uniq_umi_len	dedup_uniq_diff_pos	dedup_read_diff_pos
0	4	4.0	4	0	0
1	2	5.0	2	0	0
2	7	4.0	9	2	2
...	...	...	...	...	...

Annotation

• the 1st column - genomic positions of interest.
• the 2nd column - deduplicated UMI counts (corresponding to the number of DNA molecules/transcripts) at genomic positions.
• the 3rd column - average edit distances between UMIs at given genomic positions.
• the 4th column - unique UMI counts at given genomic positions.
• the 5th column - difference in dedup UMI counts and original unique UMI counts.
• the 6th column - difference in the number of dedup reads and original reads.
