Pipeline 1 Interaction Site Prediction

We walk you through a detailed, hands-on tutorial in predicting interaction sites in transmembrane proteins using PyPropel in tandem with TMKit, an external tool specialising in sequence analysis of transmembrane proteins.

You will specifically see how PyPropel and TMKit can batch pre-process the structures of 10,971 protein complexes files (including structures of 58,060 protein chains). Finally, we will put the generated data for machine learning using scikit-learn.

It includes 5 modules:

Features

• Pre-processing
• Feature extraction
• Machine learning with random forest
• Machine learning evaluation metrics
• Visualisation of evaluation metrics

Let's first import both of the libraries.

Python

import pypropel as pp
import tmkit as tmk

Additionally, we will also use NumPy and Pandas for quickly processing data.

Python

import numpy as np
import pandas as pd

1. Pre-processing

1.1 Downloading a PDBTM database

Then, we can download an up-to-date list of transmembrane proteins from the PDBTM database (version: 12.06.2024). Here, we also attach other two lists (version: 06.30.2023 and 10.02.2023), which were previously downloaded. The latest version of transmembrane proteins can be found here.

Python

pdb_fpn_dict = {
    '06.30.2023': 'data/database/pdbtm_alpha_06.30.2023.txt',
    '10.02.2023': 'data/database/pdbtm_alpha_10.02.2023.txt',
    '12.06.2024': 'data/database/pdbtm_alpha_12.06.2024.txt',
}

Check whether the latest list of proteins have been duplicated between one another due to technical errors. Then, save the deduplicated list of proteins (if you use version 12.06.2024 for example).

Python

df_latest = df_latest.drop_duplicates()

pp.io.write(
    sv_fpn='data/database/pdbtm_alpha_12.06.2024.txt',
    df=df_latest,
    df_sep='\t',
    header=None,
)

We read every two latest lists for getting the updated proteins.

Python

df_old = pp.io.read(
    df_fpn=pdb_fpn_dict['06.30.2023'],
    # df_fpn=pdb_fpn_dict['10.02.2023'],
    # df_fpn=pdb_fpn_dict['12.06.2024'],
    df_sep='\t',
    header=None,
)
print(df_old)

df_latest = pp.io.read(
    # df_fpn=pdb_fpn_dict['06.30.2023'],
    # df_fpn=pdb_fpn_dict['10.02.2023'],
    df_fpn=pdb_fpn_dict['12.06.2024'],
    df_sep='\t',
    header=None,
)
print(df_latest)

Find the portion of proteins updated in the latest version of PDBTM. Then, store it as prot_series.

Python

pds_diff, psd_rept = pp.io.list_diff_unipartite(
    pds_lg=df_latest[0],
    pds_sm=df_old[0],
    # sv_diff_fpn='data/database/diff.txt',
    # sv_rept_fpn='data/database/repeat.txt',
    sv_diff_fpn=None,
    sv_rept_fpn=None,
)
print(pds_diff)
print(psd_rept)

df = pd.DataFrame()
df['prot'] = pds_diff.apply(lambda x: x[:4])
df['chain'] = pds_diff.apply(lambda x: x[-1:])
df['ij'] = df.apply(lambda x: x['prot'] + '.' + x['chain'], axis=1)
print(df)
prot_series = pd.Series(df['prot'].unique())
print(prot_series)

Retrive PDBTM structures and store them in data/pdbtm/cplx/. As the protein structures are transposed from RCSB PDB files, it is necessary to denote kind as tr.

Python

tmk.seq.retrieve_pdb_from_pdbtm(
    prot_series=prot_series,
    kind='tr',
    sv_fp='data/pdbtm/cplx/',
)

Retrive PDBTM XML files (useful for getting topological information) and store them in data/xml/.

Python

tmk.seq.retrieve_xml_from_pdbtm(
    prot_series=prot_series,
    sv_fp='data/xml/',
)

1.2 Cleaning structural data

We can go on with how we extract the structure of each chain from a protein complex structure stored in PDB.

There are two ways to get the list of chains with respect to their proteins.

Option 1. Fetch all structures gathered accumulatively from updated list. This is because in each updated list, some proteins from previous lists go away yet have been downloaded. We need to include those that go away.

Python

df = pp.io.find_from_folder(
    file_path='data/pdbtm/cplx/',
    suffix='.pdb',
    flag=1,
    # sv_fpn=None,
    sv_fpn='data/cplx.txt',
)
print(df)

Then, we can use pp.str.chains to get all chains from the complex structure of each protein. After then, we save the list.

a = []
for i in df.index:
    try:
        chains = pp.str.chains(
            pdb_fp='data/pdbtm/cplx/',
            pdb_name=df[0][i],
        )
        print(i, df[0][i], chains)
        for j in chains:
            a.append([df[0][i], j])
    except:
        continue
pp.io.write(
    df=pd.DataFrame(a),
    sv_fpn='data/database/pdbtm_alpha_accumulated.txt',
    df_sep='\t',
)
df = pp.io.read(
    df_fpn='data/database/pdbtm_alpha_accumulated.txt',
    df_sep='\t',
    header=None,
).rename(columns={0: 'prot', 1: 'chain'})
print(df)

Option 2. Get chains from all previously gathered lists of proteins by getting the union of all of them. We can do like this.

Warning

Make sure each time we have two headers prot and chain in the dataframe (df) for indicating proteins and chains. Because other functions might need this information as required.

Python

df = pd.concat([pp.io.read(i) for i in [*pdb_fpn_dict.values()]]).drop_duplicates().reset_index(drop=True)
df['prot'] = pds_diff.apply(lambda x: x[:4])
df['chain'] = pds_diff.apply(lambda x: x[-1:])
print(df)

Then, use the pp.dataset.download_pack function to extract the structures of all chains from the structures of all protein complexes. To this end, we need to specify where complexes are located (e.g. data/pdbtm/cplx/) and where structures of all chains are to be stored (e.g. data/pdb/).

Note

Please note that pp.dataset.download_pack will also refine the structures of all chains (see this page). It includes reformatting structures and removing HETATM. It will also tell you if the sequence of a protein chain stored in XML file is the same as it is in the PDB file. It will extract the sequence to be stored in the FASTA format.

Python

pp.dataset.download_pack(
    prot_df=df,
    pdb_cplx_fp='data/pdbtm/cplx/',
    pdb_fp='data/pdb/',
    xml_fp='data/xml/',
    fasta_fp='data/fasta/',
)

You will see the files as shown in the following screenshoots.

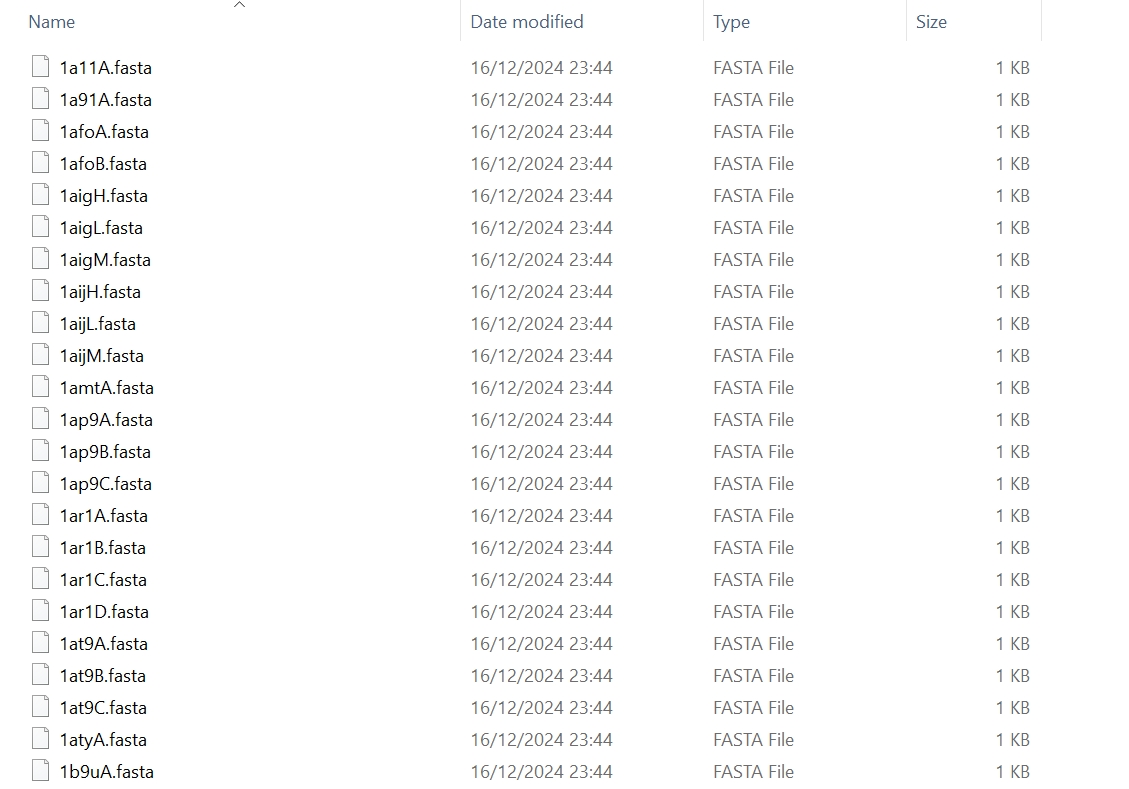

Fig. Split Fasta files per chain

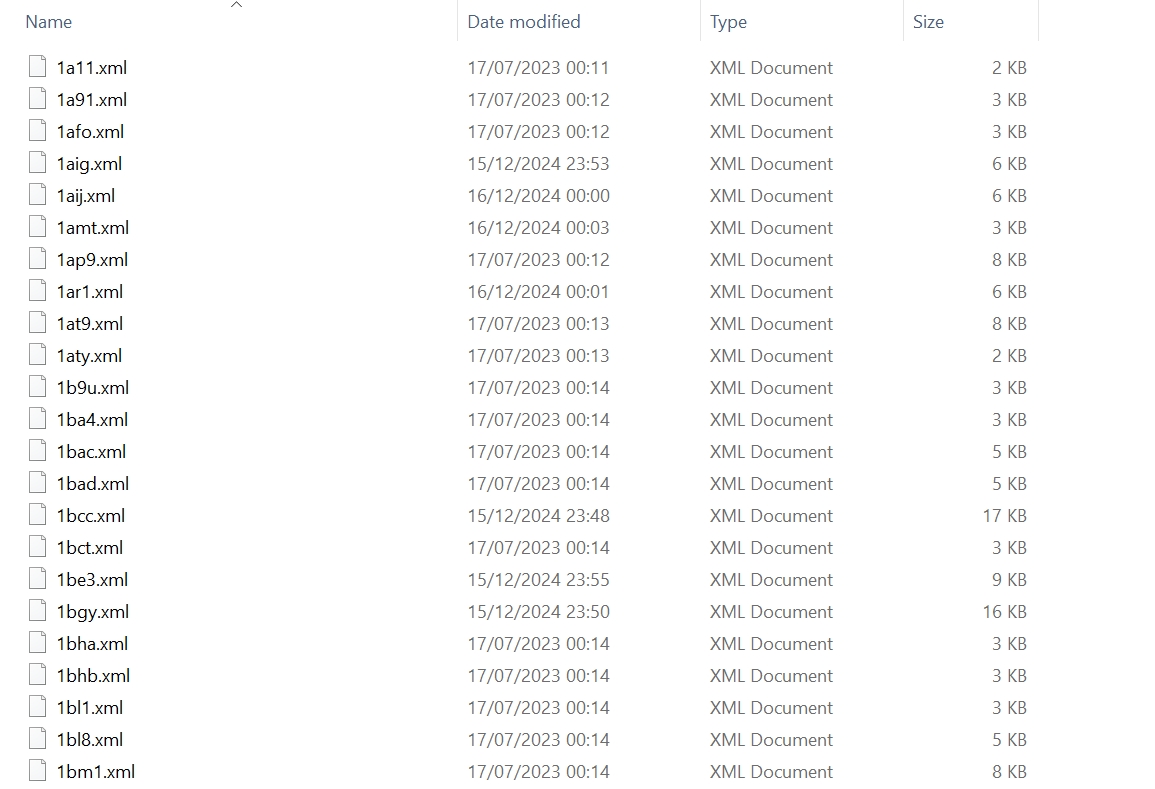

Fig. Downloaded XML files

Fig. Split PDB files per chain

1.3 Quality control of data

After these files above are obtained, everything is all set before we exactly work on quality control (QC) of the sequence, topological, and structural data.

We can use tmk.qc.integrate or tmk.qc.obtain_single to obtain the metrics that we can use to remove or retain protein chains for analysis.

For simplicity, we showcase the generation of each metric based on a metric given. We are interested in nchain, rez, met, mthm, seq, corresponding to the numebr of chains in a protein complex, resolution, resolving experimental method, number of transmembrane helices, and amino acid sequences. Apart from these, we can also order the generation of something extra by using bio_name, head, and desc for how the protein is named biologically and what is the head of the PDB file, and general description of the protein strucuture.

Python

df_qc_sgl = tmk.qc.obtain_single(
    df_prot=df_prot,
    pdb_cplx_fp=to('data/ex/pdbtm/'),
    fasta_fp=to('data/ex/fasta/'),
    xml_fp=to('data/ex/xml/'),
    sv_fp=to('data/ex/'),
    metric='nchain',
)
print(df_qc_sgl)

# df_integ = tmk.qc.integrate(
#     df_prot=df,
#     pdb_cplx_fp='data/pdbtm/cplx/',
#     fasta_fp='data/fasta/',
#     xml_fp='data/xml/',
#     sv_fp='data/qc/',
#     metrics=[
#         'nchain',
#         # 'rez',
#         # 'met',
#         # 'mthm',
#         # 'seq',
#
#         # 'bio_name', 'head', 'desc',
#     ],
# )
# print(df_integ)

Then, you will see

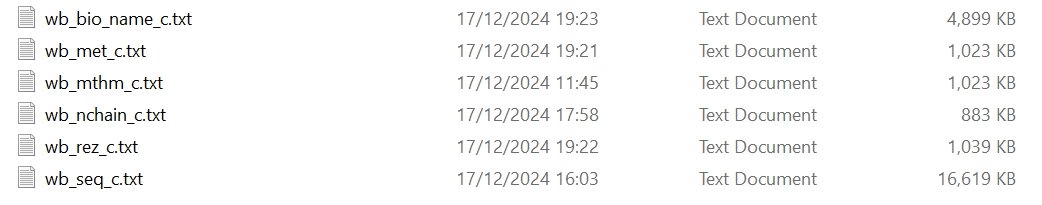

Fig. Files of QC metrics

Then, we can do a separate coding procedure for integrating these metrics together within a single file by using the following codes.

Python

qc_fpn_dict = {
    'met': 'data/qc/wb_met_c.txt',
    'mthm': 'data/qc/wb_mthm_c.txt',
    'nchain': 'data/qc/wb_nchain_c.txt',
    'rez': 'data/qc/wb_rez_c.txt',
    'bio_name': 'data/qc/wb_bio_name_c.txt',
}
df = pp.io.read(
    df_fpn='data/qc/wb_seq_c.txt',
    df_sep='\t',
    header=None,
).rename(
    columns={
        0: 'prot',
        1: 'chain',
        2: 'prot_mark',
        3: 'seq',
        4: 'len_seq',
    }
)
print(df)
for metric, fpn in qc_fpn_dict.items():
    df[metric] = pp.io.read(
        df_fpn=fpn,
    )[3]
print(df)
pp.io.write(
    df=df,
    sv_fpn='data/qc/integrate.xlsx',
    header=True,
    kind='excel',
)

1.4 Integrtation of QC metrics

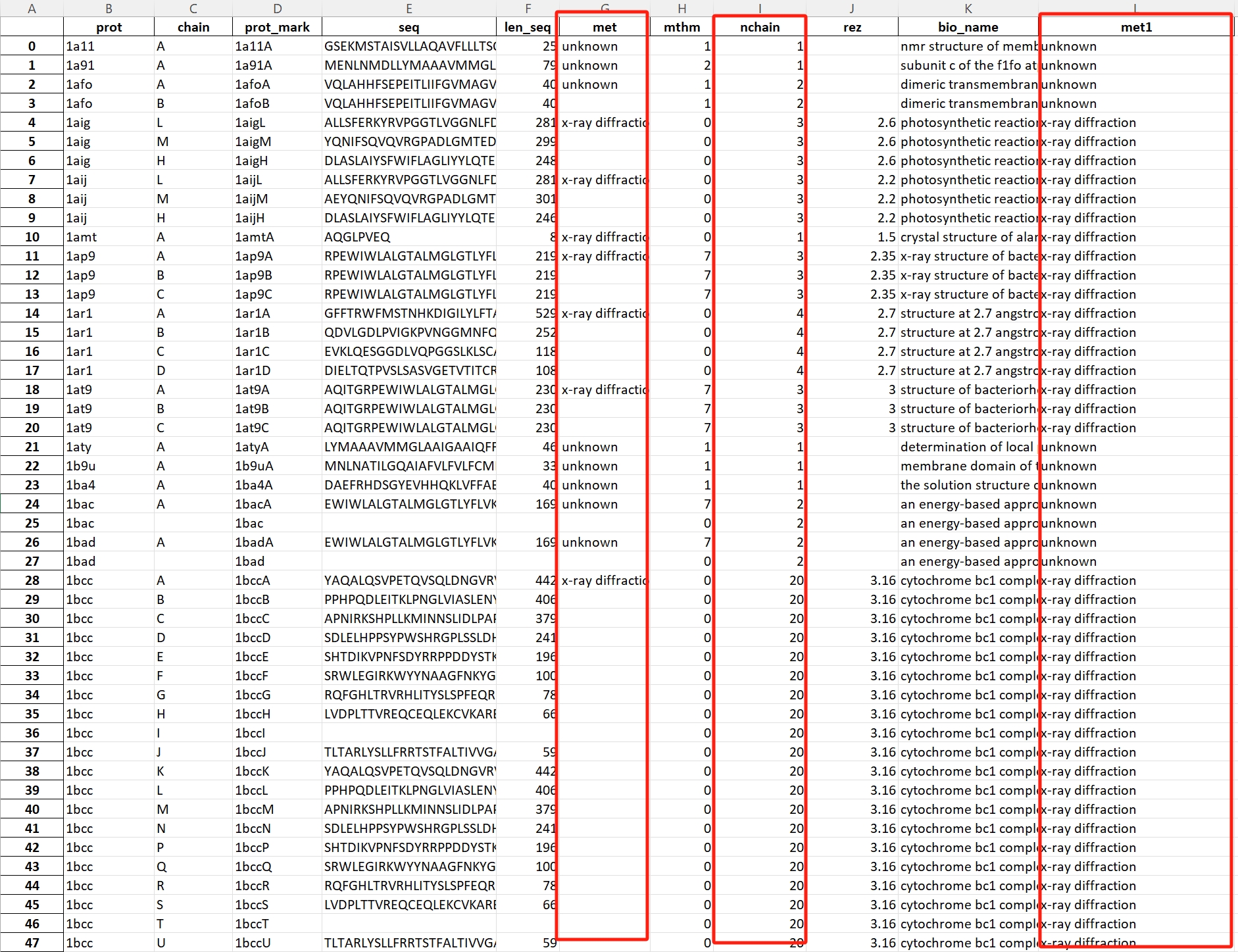

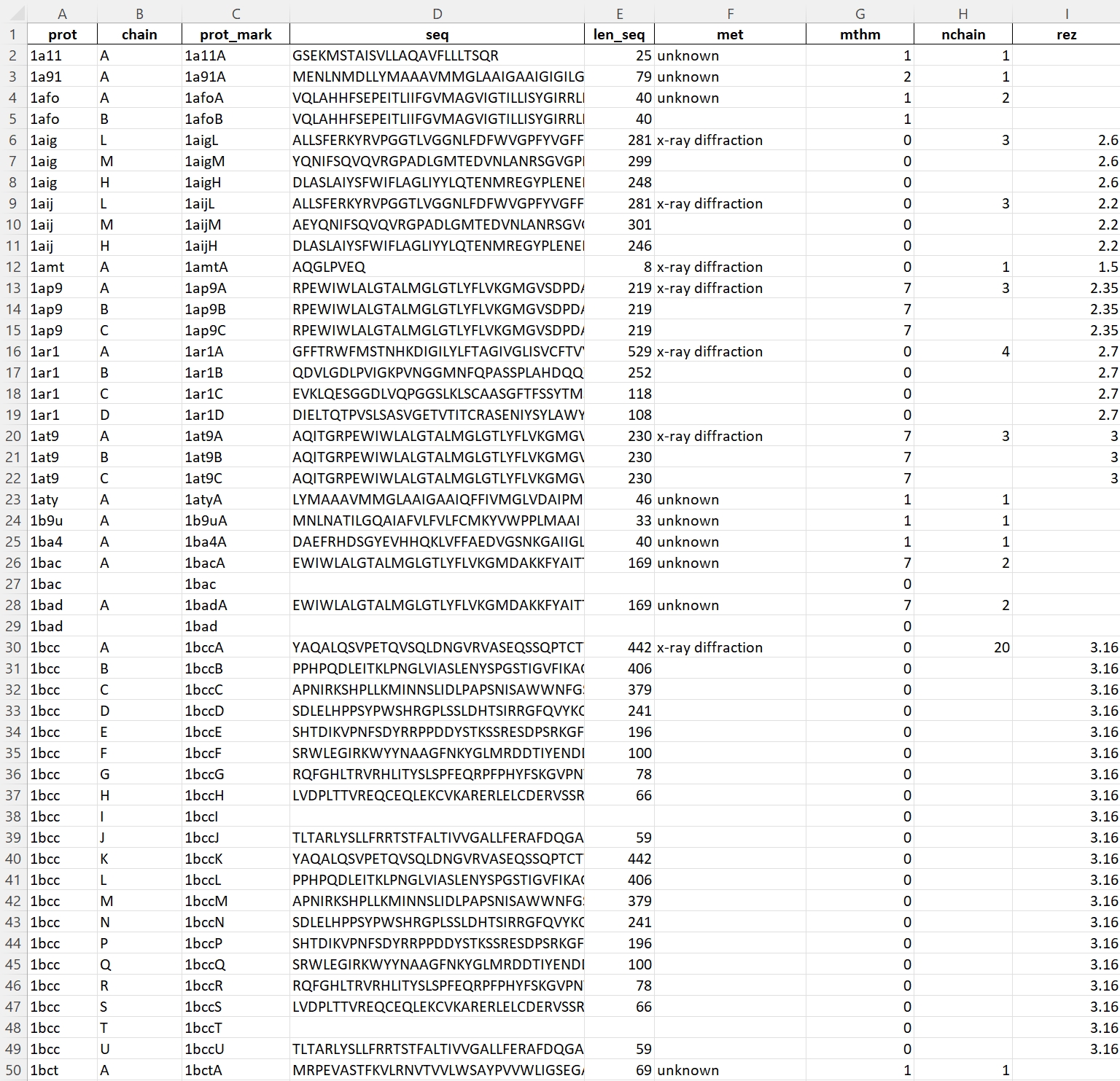

Fig. vignette of integrtated QC metrics

But you should see the problem now, for metrics met and nchain, blanks remain not filled out. This is because, we generate them at the protein complex level rather than protein chain level. But within the metric file, proteins are rendered at the protein chain levels. Thus, we need to step up the fill of the two metrics in the table. We can make it by

Python

df = pp.io.read(
    df_fpn='data/qc/integrate.xlsx',
    sheet_name='Sheet1',
    header=0,
    kind='excel',
)
print(df)
df_ = df.dropna(subset=['met'])[['prot', 'met']]
df_nchain = pd.read_csv(
    'data/qc/wb_nchain_c.txt',
    header=None,
    sep='\t',
).dropna()
nchain_map = pd.Series(df_nchain[3].values, index=df_nchain[0]).to_dict()
met_map = pd.Series(df_['met'].values, index=df_['prot']).to_dict()
# print(met_map)
# print(nchain_map)
met_keys = [*met_map.keys()]
nchain_keys = [*nchain_map.keys()]
import numpy as np
df['nchain'] = df['prot'].apply(lambda x: nchain_map[x] if x in nchain_keys else np.nan)
df['met1'] = df['prot'].apply(lambda x: met_map[x] if x in met_keys else np.nan)
print(df.prot.unique().shape[0])
df.to_excel('data/qc/integrate1.xlsx',)

This results in a file called integrate1.xlsx. We can see the blanks have all been filled out for the two metrics.

Fig. Stepping up the fill area of `met` and `nchain`

1.5 Generating datasets

Next, we can screen protein chains by setting restrictions, thus generating a dataset.

Python

df = pp.io.read(
    'data/qc/integrate1.xlsx',
    sheet_name='Sheet1',
    header=0,
    kind='excel',
)
print(df)
print(df.columns)
df = df.loc[
    (df['rez'] < 3.5)
    & (df['mthm'] >= 2)
    # & (df['len_seq'] >= 100)
    & (df['len_seq'] < 1000)
    & (df['met1'] == 'x-ray diffraction')
    & (df['nchain'] >= 2)
]
print(df.shape[0])
print(df.prot.unique().shape[0])
print(df)
pp.io.write(
    df=df,
    sv_fpn='data/qc/dataset.xlsx',
    df_sep='\t',
    header=True,
    kind='excel',
)

This results in a dataset of 7148 protein chains screened for use.

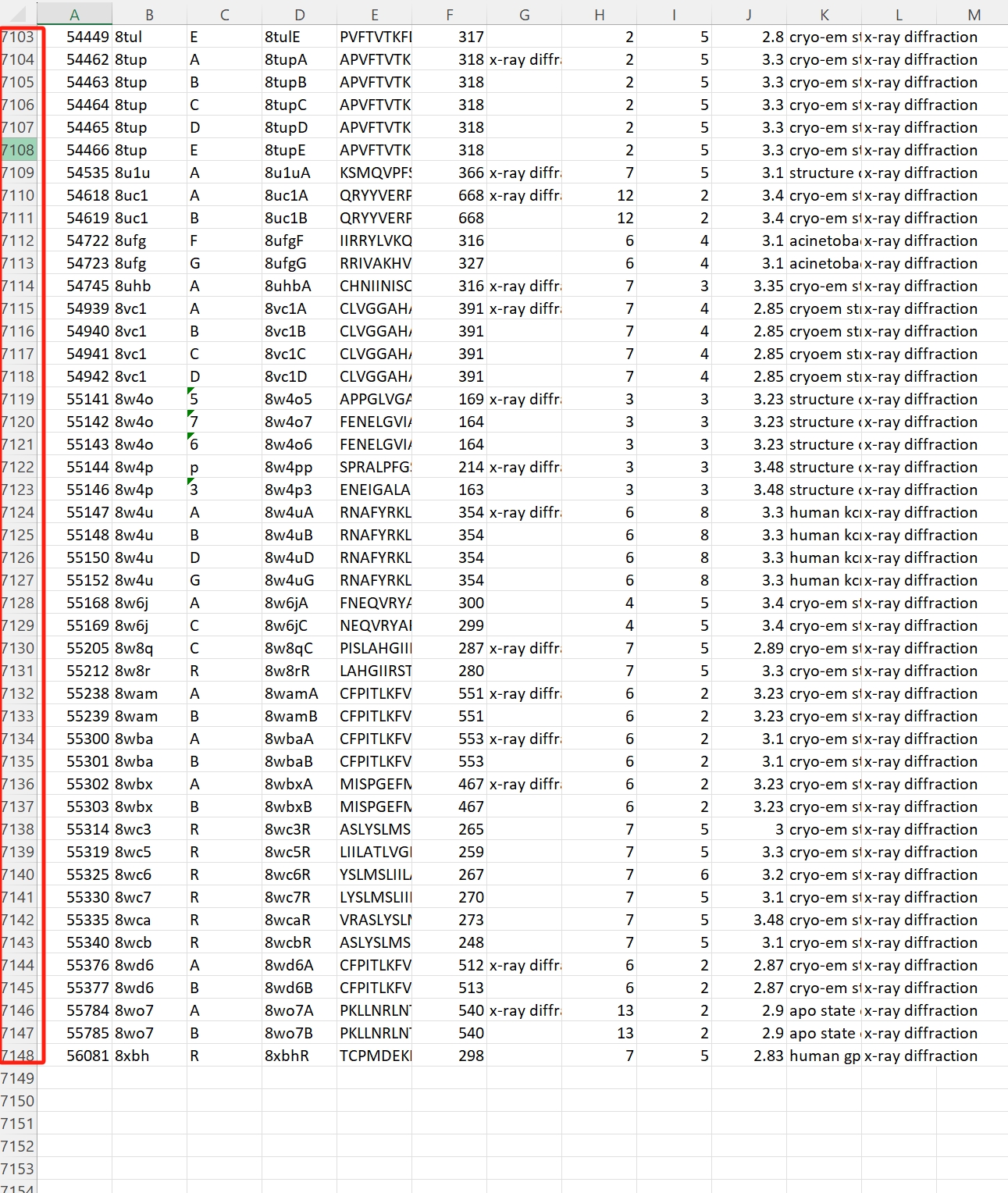

Fig. Dataset

For all of these protein complexes with at least two protein chains, we need to calculate if protein chains within the complexes are spatially and physically in interaction. This information will be treated as the labels of each protein site. We can achieve this with two ways. We can rekcon two protein chains as being in interaction if their distance is within an angstrom (Å) of 5.5.

1. Batch processing them on cloud.

Python

df = pfreader().generic(df_fpn=to('data/qc/dataset.xlsx'), header=0)
prots = df.prot.unique()

param_config = {
    'pdb_fp': '-fp',
    'pdb_fn': '-fn',
    'sv_fp': '-op',
}
value_config = {
    'tool_fp': '/path/to/your/conda environment/python',
    'script_fpn': './Complex.py',
    'pdb_fp': '/path/to/protein complex files/',
    'sv_fp': '/path/to/save/results/',
}

for key, prot in enumerate(prots):
    order_list = [
        value_config['tool_fp'],
        value_config['script_fpn'],

        param_config['pdb_fp'], value_config['pdb_fp'],
        param_config['pdb_fn'], prot,
        param_config['sv_fp'], value_config['sv_fp'],
    ]
    pp.dist.cloud_check(
        order_list=order_list,
        job_fp='/path/to/save/job files/',
        job_fn=str(key),
        cpu=2,
        memory=10,
        method='script',
        submission_method='sbatch',
    )

1. (Recommend) Or, you can still generate all of them on your own computer by the following code. This might take long to take all. You can simply extract a small portion of these proteins for training purposes. Then, if you famililarise them, you could perform all of these operations on cloud.

Python

df = pp.io.read(df_fpn=to('data/qc/dataset.xlsx'), header=0, kind='excel')
prots = df.prot.unique()
for key, prot in enumerate(prots):
    pp.dist.check_chain_complex(
        pdb_fp=to('data/pdb/complex/pdbtm/'),
        prot_name='1aij',
        sv_fp=to('data/pdb/complex/pdbtm/'),
        thres=5.5,
    )

This will result in a lot of text files per protein complex.

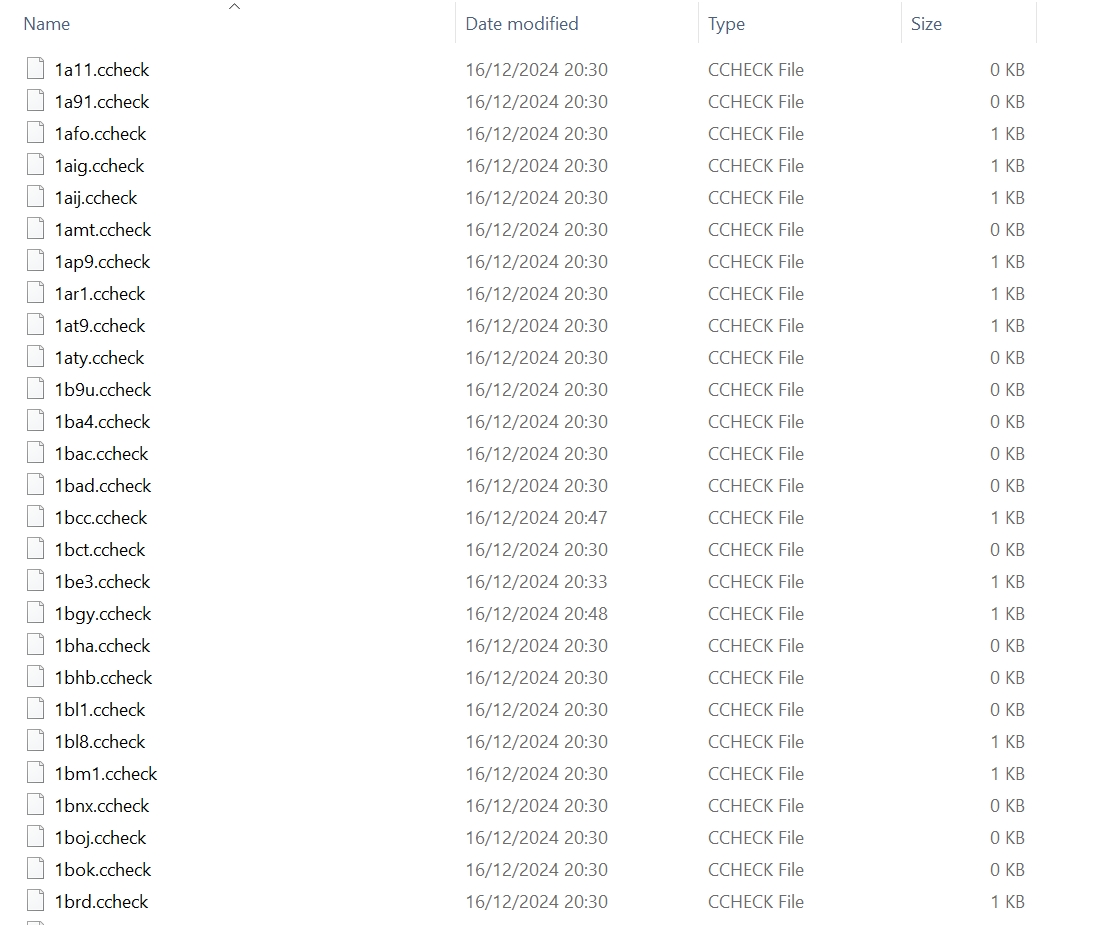

Fig. Files for checking if chains in a complex are in interaction

Then, we can merge them all as a merge.txt file for easily accessing the information.

Python

df = pp.io.find_from_folder(
    file_path='data/ccheck/',
    suffix='.ccheck',
    flag=1,
    sv_fpn=None,
    # sv_fpn=to('data/find.txt'),
)
print(df)
df_c = pd.DataFrame()
for i, file_i in enumerate(df[0].values):
    try:
        tt = pp.io.read(
            df_fpn='data/ccheck/' + str(file_i) + '.ccheck',
            df_sep='\t',
            header=None,
        )
        df_c = pd.concat([df_c, tt], axis=0).reset_index(drop=True)
    except:
        continue
print(df_c)
pp.io.write(
    df=df_c,
    sv_fpn='data/ccheck/merge.txt',
    df_sep='\t',
)

After this, we can get the overlap of both the proteins screen from QC analysis and the proteins that are in interaction. We can do the following. Then save it as dataset_post_ccheck.xlsx.

Python

df_dataset = pp.io.read(
    df_fpn='data/qc/dataset.xlsx',
    df_sep='\t',
    header=0,
    kind='excel',
)
df_ccheck = pp.io.read(df_fpn='data/ccheck/merge.txt', header=None)
df_ccheck['prot_mark'] = df_ccheck.apply(lambda x: x[0] + x[1], axis=1)
print(df_ccheck)
df = df_dataset.merge(
    df_ccheck,
    on=['prot_mark'],
)
print(df)
df = df.drop_duplicates(subset=['prot_mark'])
pp.io.write(
    df=df,
    sv_fpn='data/qc/dataset_post_ccheck.xlsx',
    df_sep='\t',
    header=True,
    kind='excel',
)
print(df)

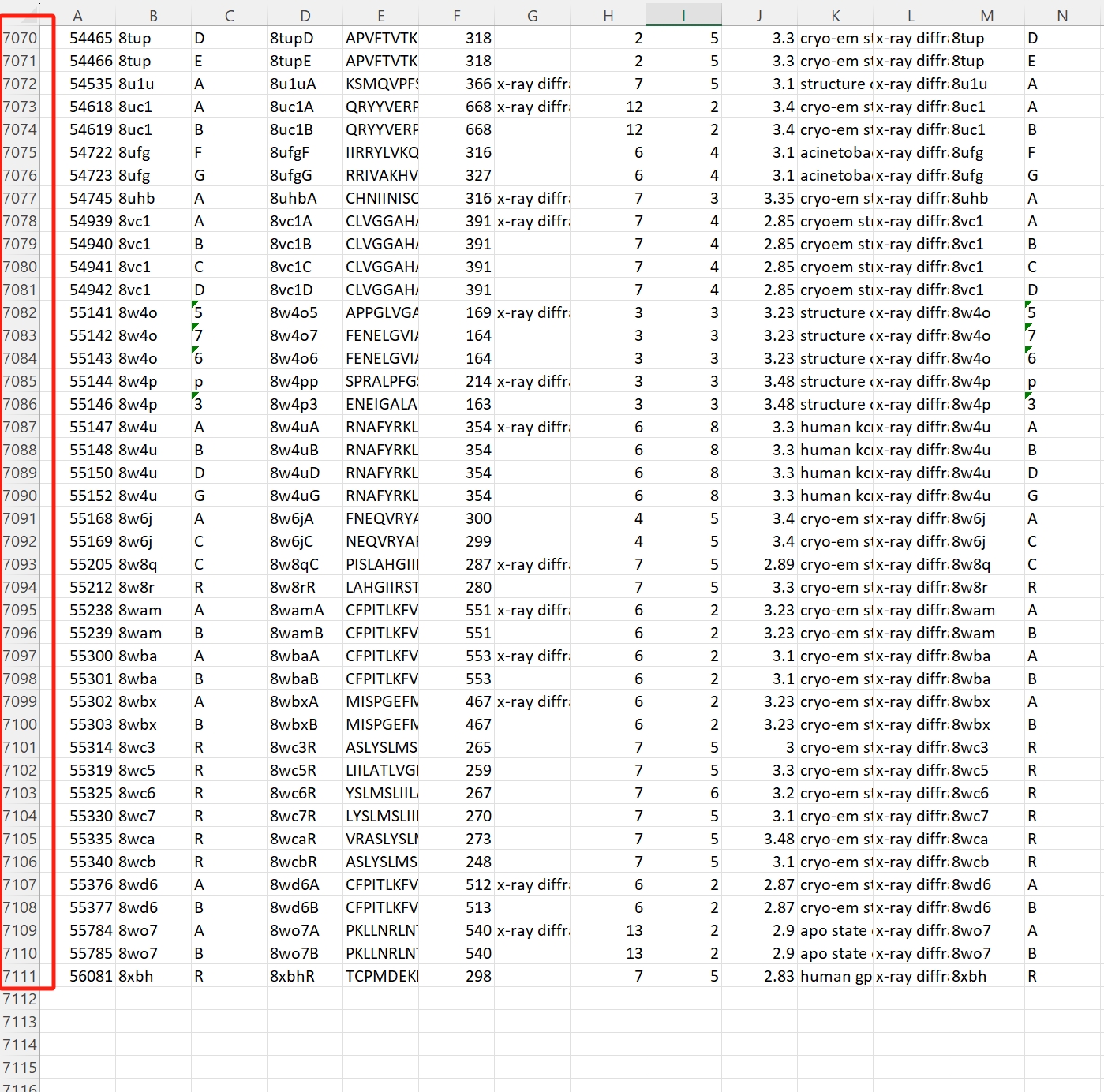

Fig. Final dataset after confirming whether they are in interaction

Now, you have the dataset for machine learning!

2. Feature extraction

We can start feature extraction for these protein chains. But for better illustration, we only take two example protein chains, that is, protein 1xqf chain A (for training a machine learning model) and protein 1aij chain L (for testing the model).

First, we can generate the label y.

Calculate the distance first.

Python

pp.dist.complex_calc_all(
    pdb_fp='data/pdbtm/cplx/',
    prot_name='1aij',
    prot_chain='L',
    method='heavy',
    sv_fp='data/dist/',
)
pp.dist.complex_calc_all(
    pdb_fp='data/pdbtm/cplx/',
    prot_name='1xqf',
    prot_chain='A',
    method='heavy',
    sv_fp='data/dist/',
)

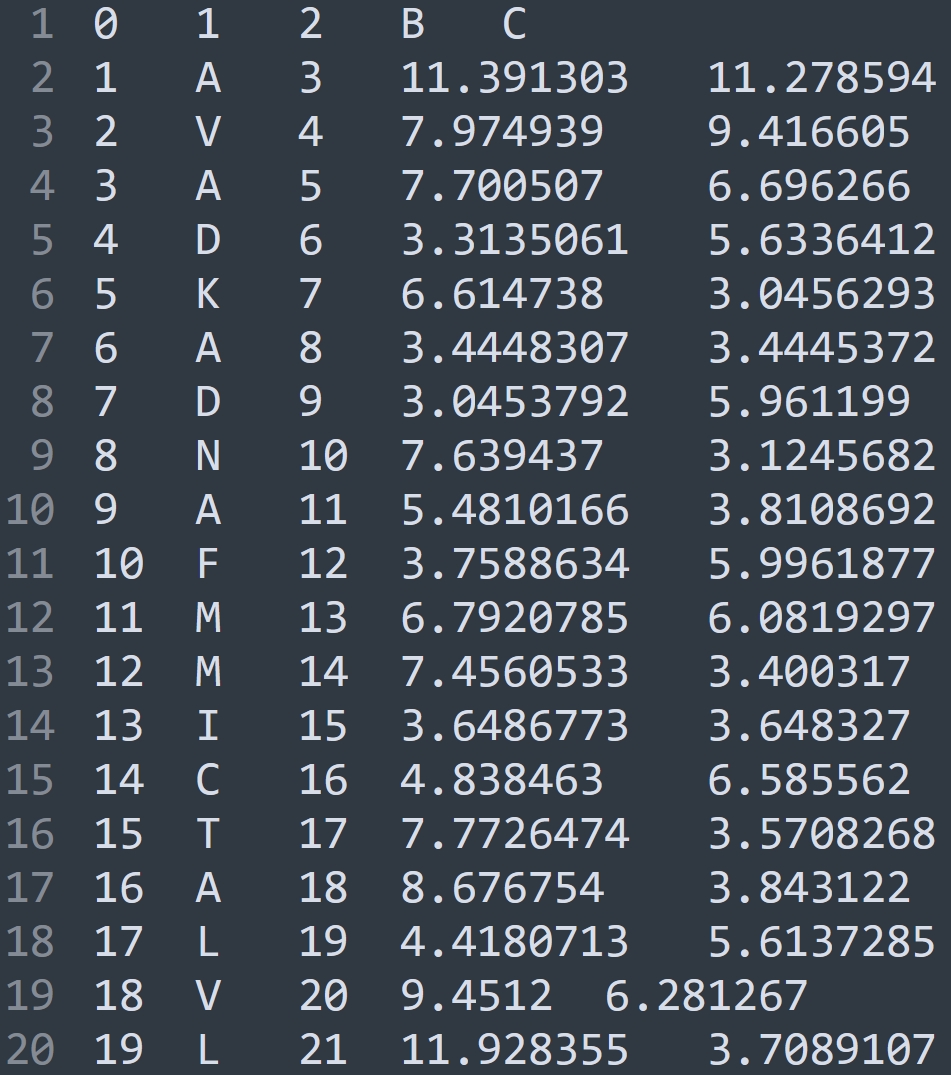

Fig. Distance of amino acids in `1xqfA`

Labelling them according to the distance then.

Python

df_train = pp.dist.labelling(
    dist_fp='data/dist/',
    prot_name='1xqf',
    file_chain='A',
    cutoff=5.5,
)
print(df_train)
df_test = pp.dist.labelling(
    dist_fp='data/dist/',
    prot_name='1aij',
    file_chain='L',
    cutoff=5.5,
)
print(df_test)

is_contact shows the label of each amino acid site.

Output

19/12/2024 15:58:15 logger: ================>Labeling data...
19/12/2024 15:58:15 logger: ================>Time to label distances 1xqf A: 0.006977558135986328s.
     fasta_id aa  pdb_id     dist_1     dist_2  is_contact
0           1  A       3  11.391303  11.278594           0
1           2  V       4   7.974939   9.416605           0
2           3  A       5   7.700507   6.696266           0
3           4  D       6   3.313506   5.633641           1
4           5  K       7   6.614738   3.045629           1
..        ... ..     ...        ...        ...         ...
357       358  G     382  35.826157  13.476321           0
358       359  L     383  32.409570  14.432422           0
359       360  R     384  32.183815  14.324697           0
360       361  V     385  28.519402  10.922935           0
361       362  P     386  32.594830  10.024420           0

[362 rows x 6 columns]
19/12/2024 15:58:15 logger: ================>Labeling data...
19/12/2024 15:58:15 logger: ================>Time to label distances 1aij L: 0.0030066967010498047s.
     fasta_id aa  pdb_id    dist_1     dist_2  is_contact
0           1  A       1  3.359507   3.820152           1
1           2  L       2  4.832898   2.840869           1
2           3  L       3  3.621853   3.450767           1
3           4  S       4  6.046180   2.841488           1
4           5  F       5  3.438960   3.688982           1
..        ... ..     ...       ...        ...         ...
276       277  G     277  2.910155  43.177975           1
277       278  G     278  3.036153  40.448544           1
278       279  I     279  2.979592  36.381110           1
279       280  N     280  2.980944  38.922234           1
280       281  G     281  3.484761  42.785560           1

[281 rows x 6 columns]

To generate X, we extract features for the two proteins. But for demenstration here, we only involve amino acid properties in this process. There are 23 properties available to use, including

Python

property = [
    "positive",
    "negative",
    "charged",
    "polar",
    "aliphatic",
    "aromatic",
    "hydrophobic",
    "small",
    "active",
    "weight",
    "pI",
    "solubility",
    "tm",
    "pka",
    "pkb",
    "hydrophilicity",
    "hydrophobicity",
    "fet",
    "hydration",
    "signal",
    "volume",
    "polarity",
    "composition",
]

Then, we mainly use the TMKit tool to generate these features.

Python

seq_train = tmk.seq.read_from_fasta(
    fasta_fpn='./data/fasta/1xqfA.fasta'
)
# print(seq_train)
seq_test = tmk.seq.read_from_fasta(
    fasta_fpn='./data/fasta/1aijL.fasta'
)
# print(seq_test)
pos_list_train = tmk.seq.pos_list_single(
    len_seq=len(seq_train),
    seq_sep_superior=None,
    seq_sep_inferior=0,
)
# print(pos_list_train)
pos_list_test = tmk.seq.pos_list_single(
    len_seq=len(seq_test),
    seq_sep_superior=None,
    seq_sep_inferior=0,
)
# print(pos_list_test)

pos_train = tmk.seq.pos_single(sequence=seq_train, pos_list=pos_list_train)
# print(pos_train)
pos_test = tmk.seq.pos_single(sequence=seq_test, pos_list=pos_list_test)
# print(pos_test)

X_train = [[] for i in range(len(pos_train))]
X_test = [[] for i in range(len(pos_test))]

for i, pos in enumerate(pos_train):
    for prop in property:
        X_train[i].append(pp.fpsite.property(prop_kind=prop)[pos[1]])
for i, pos in enumerate(pos_test):
    for prop in property:
        X_test[i].append(pp.fpsite.property(prop_kind=prop)[pos[1]])
        # print(pos)

Let's now check X and y

Python

import numpy as np
X_train = np.array(X_train)
X_test = np.array(X_test)
y_train = df_train['is_contact'].values
y_test = df_test['is_contact'].values
print(X_train)
print(X_test)
print(y_train)
print(y_test)

Output

[[1.         1.         1.         ... 0.16766467 0.39506173 0.        ]
 [1.         1.         1.         ... 0.48502994 0.12345679 0.        ]
 [1.         1.         1.         ... 0.16766467 0.39506173 0.        ]
 ...
 [0.         1.         0.33333333 ... 0.7245509  0.69135802 0.23636364]
 [1.         1.         1.         ... 0.48502994 0.12345679 0.        ]
 [1.         1.         1.         ... 0.17664671 0.38271605 0.14181818]]
[[1.         1.         1.         ... 0.16766467 0.39506173 0.        ]
 [1.         1.         1.         ... 0.64670659 0.         0.        ]
 [1.         1.         1.         ... 0.64670659 0.         0.        ]
 ...
 [1.         1.         1.         ... 0.64670659 0.03703704 0.        ]
 [1.         1.         1.         ... 0.31736527 0.82716049 0.48363636]
 [1.         1.         1.         ... 0.         0.50617284 0.26909091]]
[0 0 0 1 1 1 1 1 1 1 0 ... 0 0 0 0 0 0 0 0]
[1 1 1 1 1 1 1 1 1 1 1 ... 1 1 1 1 1 1 1 1]

3. Machine learning with random forest

Then, we can train a machine learning model by using random forest algorithms. We can draw upon the use of sklearn library.

Python

from sklearn.ensemble import RandomForestClassifier
clf = RandomForestClassifier(n_estimators=100)
clf.fit(X_train, y_train)
y_pred = clf.predict(X_test)
# print(y_pred)
y_prob = clf.predict_proba(X_test)
from sklearn import metrics
print("Accuracy:", metrics.accuracy_score(y_test, y_pred))

Output

Accuracy:  0.5765124555160143

4. Machine learning evaluation metrics

Before post-processing and post-analysing the machine learning data, we need to save the prediction probabilities in tma300 formats, having 1st column as amino acid positions, 2nd column as amino acid symbols, and 3rd column as prediction probabilities.

Python

df = pd.DataFrame(pos_test)
df = df[[0, 1]]
df[2] = y_prob[:, 0].tolist()
pp.io.write(df=df, sv_fpn='data/isite/1aijL.tma300')

Then, batch generating comprehensive sets of evaluation metrics.

Python

pp.eval.sitewise_segment(
    prot_df=pd.DataFrame({
        'prot': ['1aij', ],
        'chain': ['L', ],
    }),
    dist_fp='data/dist/',
    dist_limit=5.5,
    tool_fp='data/isite/',
    tool='tma300',
    pdb_fp='data/pdb/',
    topo_fp='data/isite/',
    xml_fp='data/xml/',
    fasta_fp='data/fasta/',
    segment='phobius_tmh',
    sort=1,
    sv_fp='data/isite/',
)

Warning

We made the evaluation in transmembrane areas predicted by Phobius. Then, we need to put this file in topo_fp='data/isite/'. This file can be downloaded from the PyPropel repository through the release tab.

Then, we will see a lot of files of evaluation metrics there.

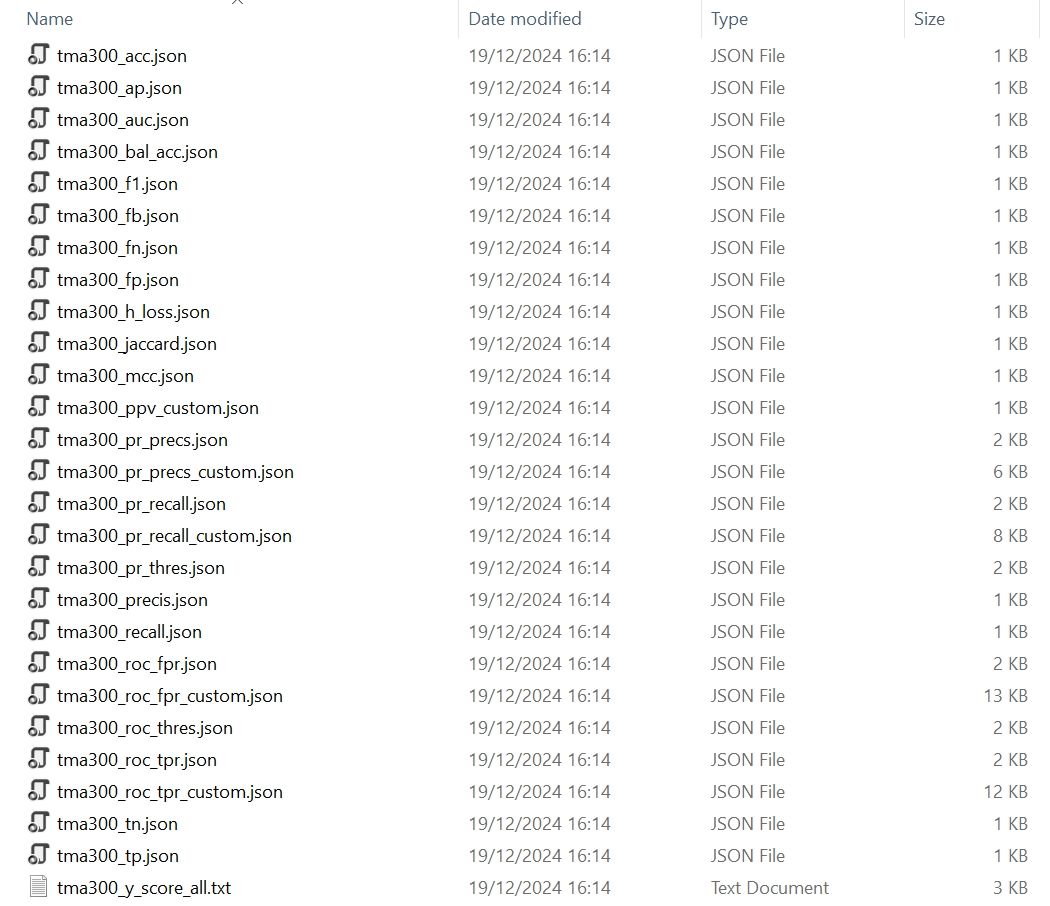

Fig. Files of evaluation metrics

The metrics are tabulated in JSON formats.

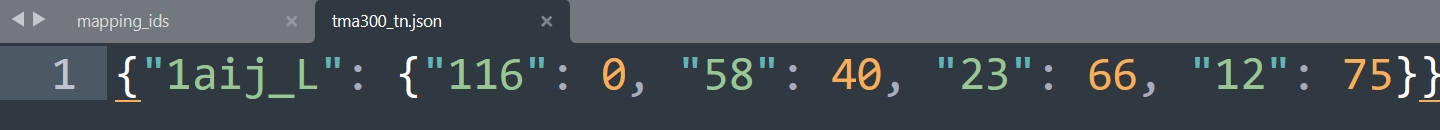

Fig. True positives

5. Visualisation of evaluation metrics

Finally, we can plot the evaluation metrics using PyPropel. For example, the ROC curves.

Python

X_fpns = {
    'tma300': 'data/isite/tma300_roc_fpr_custom.json',
}
Y_fpns = {
    'tma300': 'data/isite/tma300_roc_tpr_custom.json',
}
import matplotlib.pyplot as plt
fig, ax = plt.subplots(
    nrows=2,
    ncols=2,
    # figsize=(6, 5),
    figsize=(12, 10),
    sharey='all',
    sharex=False,
)
pp.plot.rocpr(
    X_fpns,
    Y_fpns,
    x_label='fpr',
    y_label='tpr',
    title='',
    ax=ax[0, 0],
)
pp.plot.rocpr(
    X_fpns,
    Y_fpns,
    x_label='fpr',
    y_label='tpr',
    title='',
    ax=ax[0, 1],
)
pp.plot.rocpr(
    X_fpns,
    Y_fpns,
    x_label='fpr',
    y_label='tpr',
    title='',
    ax=ax[1, 0],
)
plt.show()

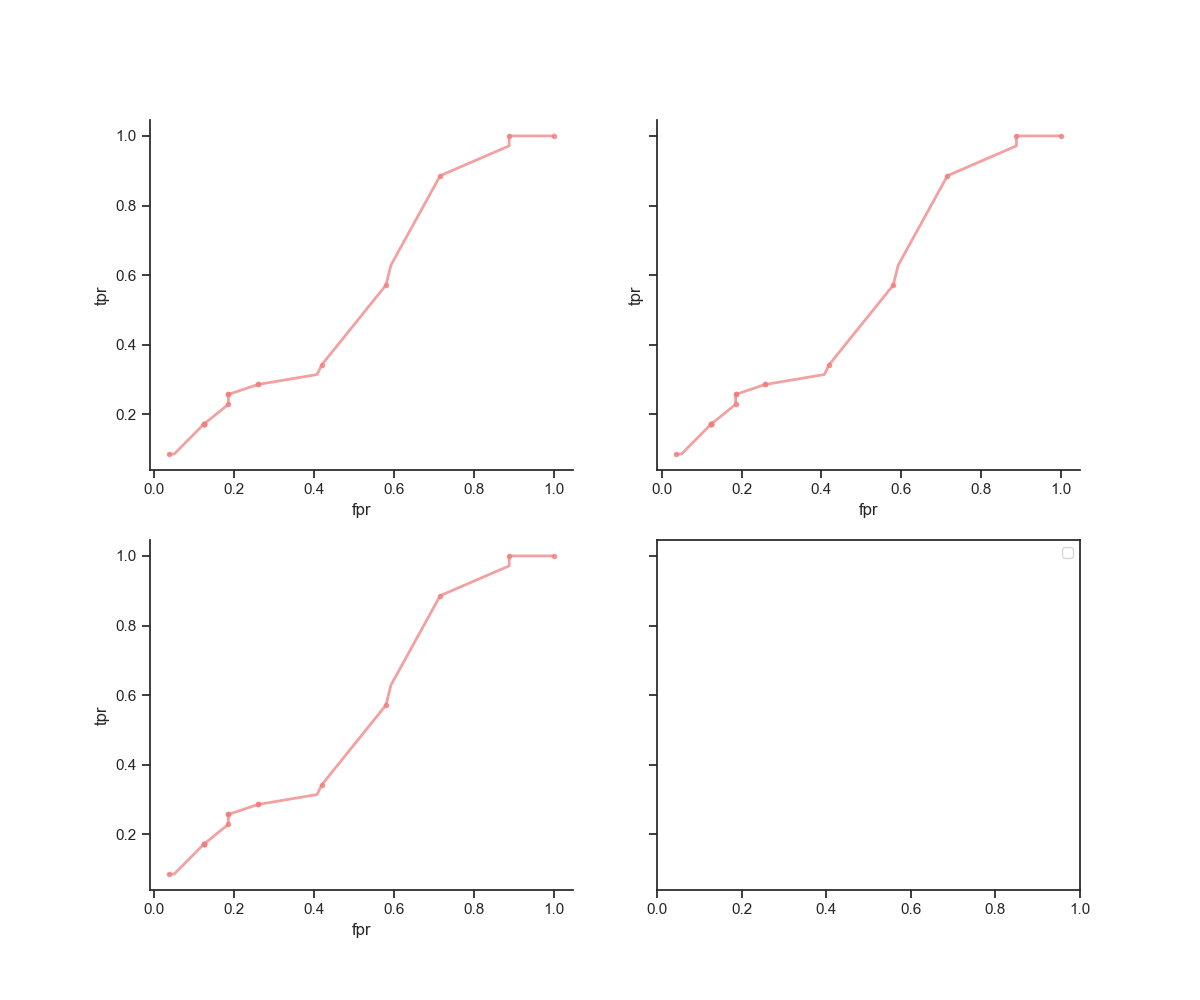

Fig. ROC curve
