Pipeline 2 Drug Target Interaction Prediction

In this review, we supplid a deep learning method, Drutai, for sequence-based drug discovery. It uses a dataset of drug target interactions (DTIs) downloaded from DrugBank with a version: 5.1.8. The proteins are from human. Now, we show an example of whether we could use PyPropel together with other tools to quickly train a machine learning model for predicting DTIs specific to human transmembrane proteins.

We walk you through a detailed, hands-on tutorial in achieving this purpose. First, we download the human transmembrane proteins from UniProt. Second, we download the DTIs from DrugBank. The data can be fetched from the PyPropel repository through the release tab, where the training and test datasets of Drutai can also be found.

Abstract

The key idea is to get the portion of Drutai's training and test proteins overlapped with the transmenbrane proteome. Using them, we demonstrate how to train a new predictor. Importantly, the idea can be supported step-by-step by PyPropel because the combination of a few APIs can achieve it.

You will specifically see how PyPropel and TMKit can batch pre-process the structures of 10,971 protein complexes files (including structures of 58,060 protein chains). Finally, we will put the generated data for machine learning using scikit-learn.

It includes 4 procedures:

Features

• Data preparation
• Generation of training and test datasets
• Feature extraction
• Machine learning with random forest

Let's first import both of the libraries.

Python

import pypropel as pp
import tmkit as tmk

Additionally, we will also use NumPy and Pandas for quickly processing data.

Python

import numpy as np
import pandas as pd

1. Data preparation

First, we need to split the transmembrane proteome into separate Fasta files to gain the sequences and identifiers of proteins.

Python

df, df_new = pp.convert.many2single(
    fasta_fpn='data/dti/uniprotkb_KW_0812_AND_reviewed_true_AND_2024_12_08.fasta',
    mode='uniprot',
    species='HUMAN',
    sv_fp='data/dti/transmembrane/',
)

Similarly, we split the entire protein set (approved.fasta) into individual protein files.

Info

Due to different formats of the headers in Fasta files between UniProt and DrugBank, we need to specify mode='uniprot' or mode='drugbank' there to tell PyPropel to take action to tailor these formats.

Python

df, df_new = pp.convert.many2single(
    fasta_fpn='data/dti/approved.fasta',
    mode='drugbank',
    species='',
    sv_fp='data/dti/drugbank/',
)

Warning

Becasue the training set of proteins in Drutai contains the portion of proteins categorised into experimental by DrugBank, we will need to also extract the entire proteins from expt.fasta.

We can obtain the identifiers of all UniProt's and DrugBank's transmembrane proteins this way.

Python

df_tm = pp.io.find_from_folder(
    file_path='data/dti/transmembrane/',
    suffix='.fasta',
    flag=1,
    sv_fpn=None,
    # sv_fpn=to('data/find.txt'),
)
print(df_tm)

df_drugbank = pp.io.find_from_folder(
    file_path='data/dti/drugbank/',
    suffix='.fasta',
    flag=1,
    sv_fpn=None,
    # sv_fpn=to('data/find.txt'),
)
print(df_drugbank)

We can gain an understanding of the quantity of drug targets that are overlapped with transmembrane proteome.

Python

df_drugbank_tm = df_drugbank.loc[df_drugbank[0].isin(df_tm[0].values)]
print(df_drugbank_tm)

Download training and test sets of Drutai from PyPropel's Github repository. They are

1. train_pl.txt.txt
2. train_nl.txt
3. positive_test.txt
4. negative_test.txt

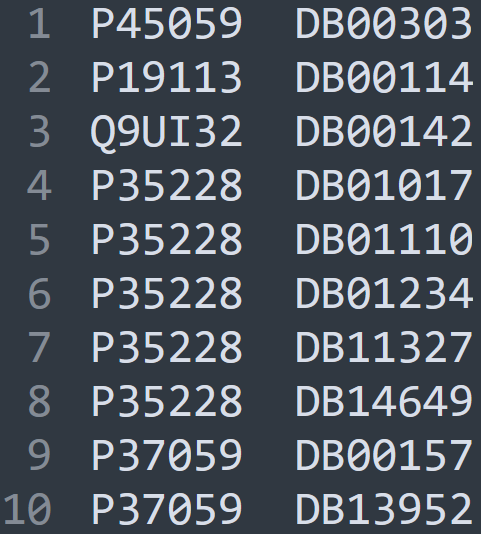

For example, DTIs are arranged in the train_pl.txt.txt file as below.

Fig. DTIs

2. Generation of training and test datasets

We can build the training set of proteins.

Python

df_ptrain = pp.io.read(
    df_fpn='data/dti/train_pl.txt'
)
df_ntrain = pp.io.read(
    df_fpn='data/dti/train_nl.txt'
)
print(df_ptrain)
print(df_ntrain)
df_ptrain_tm = df_ptrain.loc[df_ptrain[0].isin(df_tm[0].values)]
df_ntrain_tm = df_ntrain.loc[df_ntrain[0].isin(df_tm[0].values)]
df_ptrain_tm[2] = 1
df_ntrain_tm[2] = 0
print(df_ptrain_tm)
print(df_ntrain_tm)
df_train = (pd.concat([df_ptrain_tm, df_ntrain_tm], axis=0).reset_index(drop=True))

We can build the test set of proteins.

Python

df_ptest = pp.io.read(
    df_fpn='data/dti/positive_test.txt'
)
df_ntest = pp.io.read(
    df_fpn='data/dti/negative_test.txt'
)
# print(df_ptest)
# print(df_ntest)

df_ptest_tm = df_ptest.loc[df_ptest[0].isin(df_tm[0].values)]
df_ntest_tm = df_ntest.loc[df_ntest[0].isin(df_tm[0].values)]
df_ptest_tm[2] = 1
df_ntest_tm[2] = 0
# print(df_ptest_tm)
# print(df_ntest_tm)

It is important to shuffle the training dataset to ensure randomness for better machine learning.

Python

df_train = df_train.iloc[np.random.RandomState(1).permutation(df_train.shape[0])].reset_index(drop=True)

3. Feature extraction

Let's now engineer a set of protein and chemical features into a X matrix for machine learning.

To gain chemical features, we use the RDKit tool (please ensure that it has been installed in your conda environment before use). The all.sdf contains the structures of all molecules downloaded from DrugBank (version: 5.1.8). We store them in a dictionary mols for easily accessing them whenever use.

Python

from rdkit import Chem
from rdkit.Chem import Crippen
all_mols = Chem.SDMolSupplier('data/dti/all.sdf')
mols = dict()
for mol in all_mols:
    if mol:
        mols[mol.GetProp('DATABASE_ID')] = mol

We set a for loop to obtain each pair of a protein and a drug molecule each time.

Info

The protein features include: AAC, DAC, TAC, CKSNAP, and AVEANF. The usage of all of them are shown in the documentation of PyPropel.

We can first use protein features of AAC, DAC, and AVEANF only to gain the first sight on what the prediction performance looks like, as below.

Python

X = [[] for _ in range(df_train.shape[0])]
for i in range(df_train.shape[0]):
    print('pair {}: {} {}'.format(i, df_train[0][i], df_train[1][i]))
    sequence = tmk.seq.read_from_fasta(fasta_fpn='data/dti/drugbank/' + str(df_train[0][i]) + '.fasta')
    # print(sequence)
    # ### #/*** block AAC (20) ***/
    aac = pp.fpseq.composition(
        seq=sequence,
        mode='aac',
    )
    aac_ = [*aac.values()]
    aac_ = [np.float32(i) for i in aac_]
    for j in range(20):
        X[i].append(aac_[j])

    # ### #/*** block DAC (400) ***/
    dac = pp.fpseq.composition(
        seq=sequence,
        mode='dac',
    )
    for j in range(400):
        X[i].append(np.float32(dac[j][1]))

    # ### #/*** block TAC (8000) ***/
    # tac = pp.fpseq.composition(
    #     seq=sequence,
    #     mode='tac',
    # )
    # for j in range(8000):
    #     X[i].append(np.float32(tac[j][1]))

    # cksnap = pp.fpseq.composition(
    #     seq=sequence,
    #     mode='cksnap',
    # )
    # cksnap_ = [*cksnap.values()]
    # cksnap_ = [np.float32(i) for i in cksnap_]
    # for j in range(400):
    #     X[i].append(cksnap_[j])

    aveanf = pp.fpseq.composition(
        seq=sequence,
        mode='aveanf',
    )
    aveanf_ = [*aveanf.values()]
    aveanf_ = [np.float32(i) for i in aveanf_]
    for j in range(20):
        X[i].append(aveanf_[j])

    mol_name = df_train[1][i]

    # LogP = Crippen.MolLogP(mols[mol_name])
    # molar_refractivity = Crippen.MolMR(mols[mol_name])
    # lm = np.array([LogP, molar_refractivity])
    # # print(lm)
    # for _, v in enumerate(lm):
    #     X[i].append(np.float32(v))

In addition, during the feature extraction, the way we put features in can be equivalently used in putting features generated by other tools, for example, PyProtein.

Python

 # ### #/*** block CTD (147) ***/
# ctd_ = PyProtein.PyProtein(sequence).GetCTD()
# ctd_values = ctd_.values()
# for val in ctd_values:
#     features[i].append(np.float32(val))

In the training set, we have 9426 DTIs in total. We can train the first 8000 DTIs and take the rest of them for validation of machine learning performance.

Python

y = df_train[2].values

X_train = X[:8000]
X_test = X[8000:]
y_train = y[:8000]
y_test = y[8000:]

Output

[[ 7.3016003e-02  2.8571000e-02  2.8571000e-02 ...  5.0414350e-02
   3.5518999e+00  1.3252400e+02]
 [ 4.2826999e-02  2.5696000e-02  5.3532999e-02 ...  4.4115603e-02
  -1.4215300e+00  8.4962303e+01]
 [ 5.9880000e-02  5.9880000e-03  5.3892002e-02 ...  3.6085926e-02
  -2.1226001e+00  2.7285200e+01]
 ...
 [ 1.5277800e-01  2.1825001e-02  3.7698001e-02 ...  3.0565832e-02
  -3.4000000e-01  1.8316799e+01]
 [ 9.7156003e-02  3.3174999e-02  3.7914999e-02 ...  3.1797495e-02
   3.3736999e+00  1.1967500e+02]
 [ 8.2608998e-02  3.2609001e-02  2.1739000e-02 ...  3.8699895e-02
   3.8090000e+00  1.1576270e+02]]
(9426, 442)

4. Machine learning with random forest

3.1 training a random forest model

Python

from sklearn.ensemble import RandomForestClassifier
clf = RandomForestClassifier(n_estimators=100)
clf.fit(X_train, y_train)

3.2 evaluation

Python

y_pred = clf.predict(X_test)
print(y_pred)
from sklearn import metrics
print("Aaccuracy: ", metrics.accuracy_score(y_test, y_pred))

If we use protein features only, the aaccuracy is

Output

Aaccuracy: 0.7349228611500701

If we further add chemical features of LogP and molar refractivity of drug molecules, the aaccuracy becomes

Output

Aaccuracy: 0.7496493688639552

We can see the extra introduction of some features, prediction performance gets boosted.
