1.3 Bulk RNA seq

tresor.gene.library is the module that can simulate sequencing libraries at the bulk RNA-seq level. This is used to simulate reads that are tagged by genes, respectively.

Usage

ts.gene.library(
    r_root='D:/Programming/R/R-4.3.2/',
    num_genes=6,
    num_samples=2,
    simulator='spsimseq',

    seq_num=50,
    len_params={
        'umi': {
            'umi_unit_pattern': 3,
            'umi_unit_len': 12,
        },
        'seq': 100,
    },
    seq_params={
        'custom': 'BAGC',
        'custom_1': 'V',
    },
    material_params={
        'fasta_cdna_fpn': to('data/Homo_sapiens.GRCh38.cdna.all.fa.gz'),  # None False
    },
    is_seed=True,

    working_dir=to('data/simu/docs/'),

    condis=['umi', 'custom', 'seq', 'custom_1'],

    sim_thres=3,
    permutation=0,

    mode='short_read',  # long_read short_read

    verbose=False,
)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
tresor library_bulk \
-cfpn ./tresor/data/libgene.yml \
-snum 50 \
-rfpn D:/Programming/R/R-4.3.2/ \
-nspl 2 \
-ngene 20 \
-gsimulator spsimseq \
-permut 0 \
-sthres 3 \
-wd ./tresor/data/simu/ \
-md short_read \
-is True \
-vb True

Code highlighted is executed as equivalent to do coding in the following way. We employed the SPsimSeq tool1 to simulate bulk RNA-seq data. In this case, we simulated a sample-by-gene count matrix containing 6 genes and 2 samples.

1
2
3
4
5
6
7
8
9
import tresor as ts

gspl = ts.gmat.spsimseq_bulk(
    R_root='D:/Programming/R/R-4.3.2/',
    num_genes=6,
    num_samples=2,
)

print(gspl)

The count matrix is formed below.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
17/07/2024 22:49:05 logger: =========>spsimseq is being used
SPsimSeq package version 1.12.0
R[write to console]: Estimating featurewise correlations ...

R[write to console]: Selecting candidate DE genes ...

R[write to console]: Estimating densities ...

R[write to console]: Configuring design ...

R[write to console]: Simulating data ...

R[write to console]:  ...1 of 1

17/07/2024 22:49:13 logger: =========>spsimseq completes simulation
          Gene_1  Gene_2  Gene_3  Gene_4  Gene_5  Gene_6
Sample_1     0.0     0.0     0.0    95.0   322.0   423.0
Sample_2     2.0     2.0     1.0   273.0   671.0   467.0
17/07/2024 22:49:13 logger: =========>spsimseq is being used
SPsimSeq package version 1.12.0

Then, we use this count matrix as input to Tresor's corresponding module ts.gene.library.

Attributes

Illustration

Attribute Description
seq_num number of RNA molecules. 50 by default
len_params lengths of different components of a read
seq_params sequences of different components of a read, It allows users to add their customised sequences
material_params a Python dictionary. Showing if cDNA libraries are provided, please use key word fasta_cdna_fpn. The human cDNA library can be downloaded through the Ensembl genome database
num_genes number of genes
num_samples number of samples
r_root path to the R executable
simulator computational tool to generate a sample-by-gene count matrix
is_seed if seeds are used to simulate sequencing libraries. This is designed to make in silico experiments reproducible
working_dir working directory where all simulation results are about to be saved
condis names of components that a read contains. It can contains an unlimited number of read components
sim_thres similarity threshold. 3 by default
permutation permutation times
mode long_read or short_read
verbose whether to print intermediate results
Attribute Description
cfpn location to the yaml configuration file. Users can specify the atrributes illustrated on the Python tab in the .yml file.
snum number of sequencing molecules
rfpn path to the R executable
nspl number of samples
ngene number of genes
gsimulator computational tool to generate a sample-by-gene count matrix
permut permutation times
sthres similarity threshold. 3 by default
wd working directory where all simulation results are about to be saved
md long_read or short_read mode
is if seeds are used to simulate sequencing libraries. This is designed for reproducible in silico experiments
vb whether to print intermediate results

```

Output

Console

{'seq_num': 50, 'seq_params': {'custom': 'BAGC', 'custom_1': 'V'}, 'material_params': {'fasta_cdna_fpn': 'D:\\Document\\Programming\\Python\\tresor\\tresor\\data/Homo_sapiens.GRCh38.cdna.all.fa.gz'}, 'mode': 'short_read'}
Finished

Understanding files

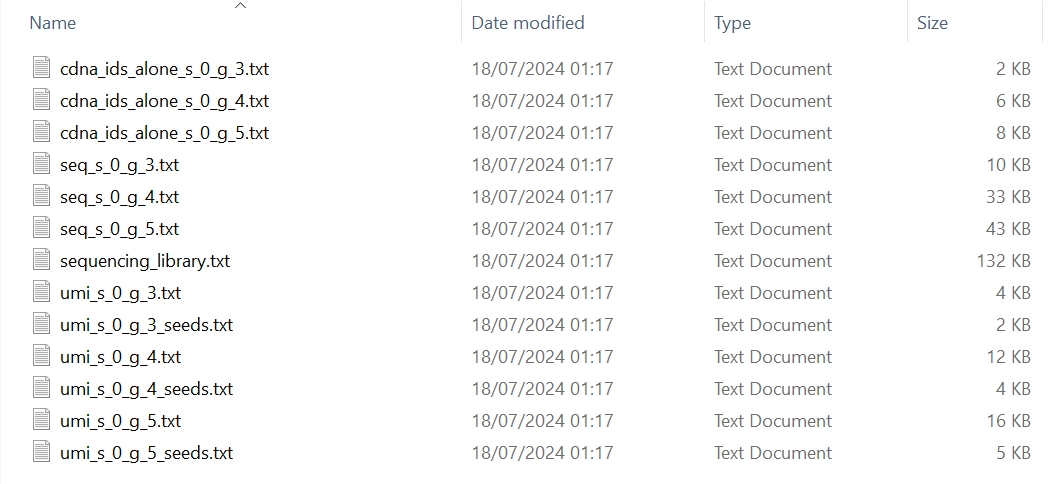

The resultant files of the simulated sequencing library are shown in the following picture.

Image title
Fig 1. Generated files of a sequencing library

Annotation

For speeding up computation, we simulated the library for sample 0, which has genes 3, 4, and 5.

  • seq_s_0_g_3.txt - sequences for sample 0 and gene 3
  • umi_s_0_g_3.txt - UMIs for sample 0 and gene 3
  • cdna_ids_alone_s_0_g_3.txt - cDNA IDs for sample 0 and gene 3

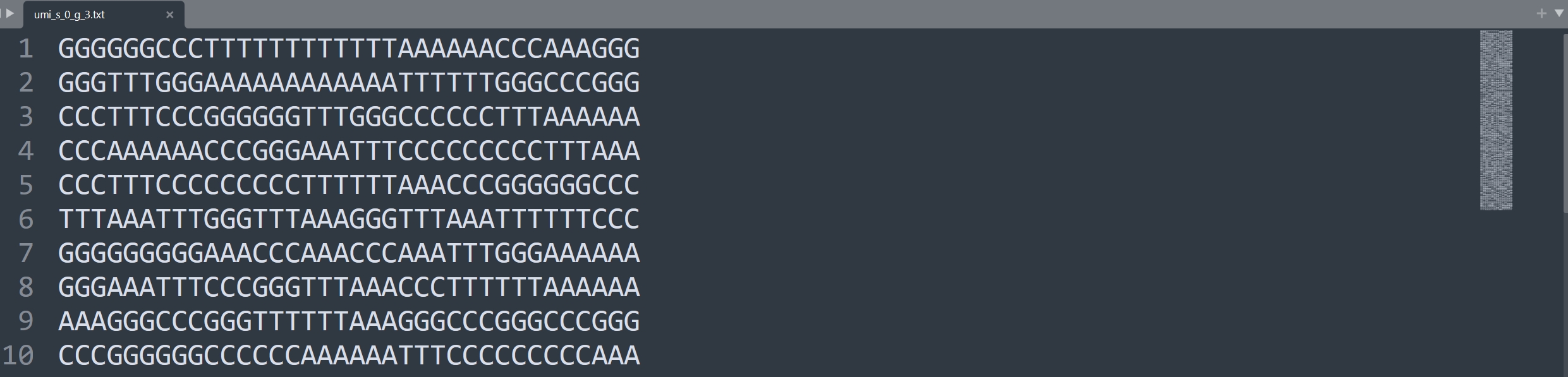

In this case, we used homotrimer blocks to simulate UMIs where the length of each UMI is set to be 36 containing 12 trimer blocks.

Image title
Fig 2. Simulated UMIs

The sequences are randomly chosen from the input human cDNAs and truncated according to the length of each short read.

Image title
Fig 3. Simulated genomics sequences

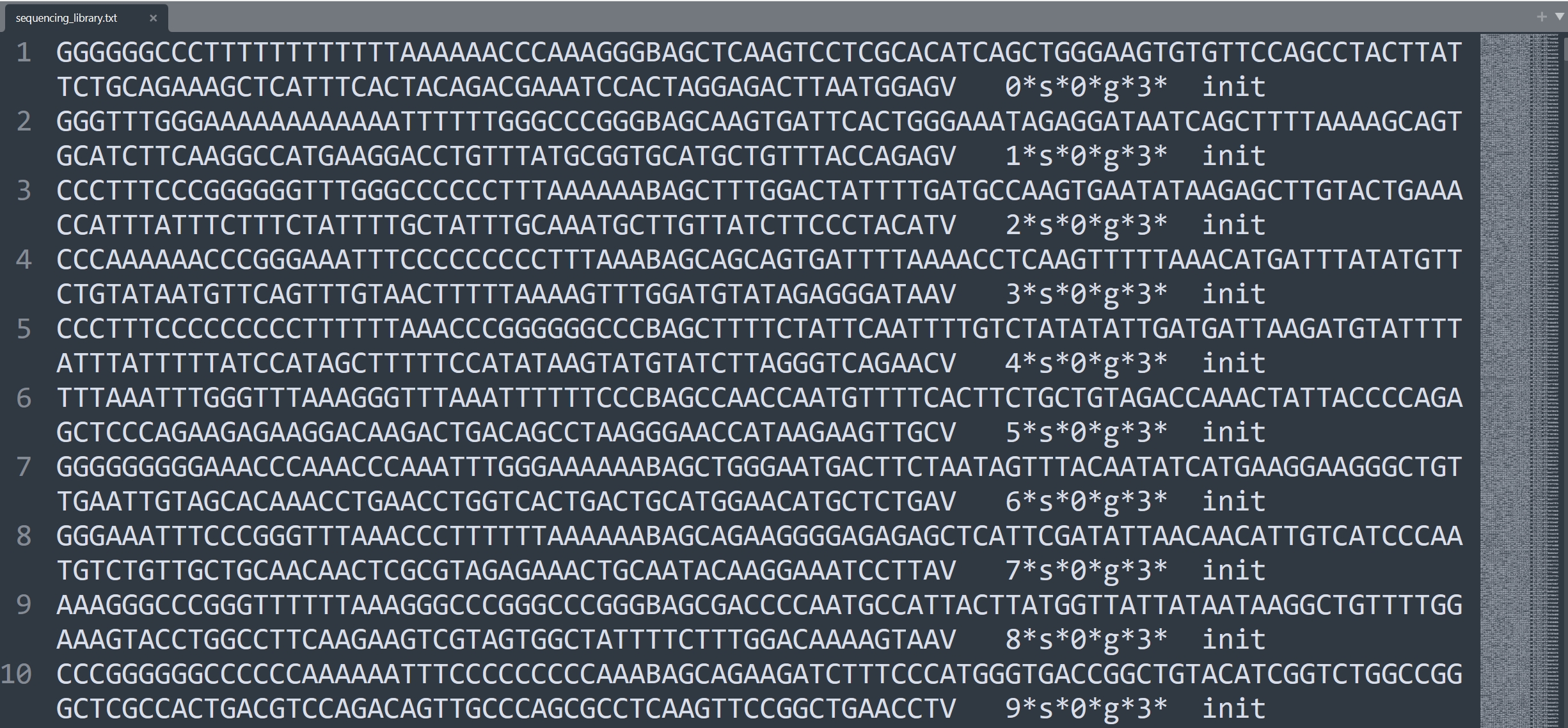

The sequencing library is tabulated to a dataframe. Each row shows the necessary information about the read 1

  1. Sequence
  2. Identifier
  3. Source

Attention

The identifier is composed of ID of the molecule, character s for sample, ID of the sample, character g for gene, and ID of the gene, demarked by *.

Init means a read 1 is a sequence from the sequencing library, to differ from those from PCR amplification.

Image title
Fig 4. Simulated sequencing library

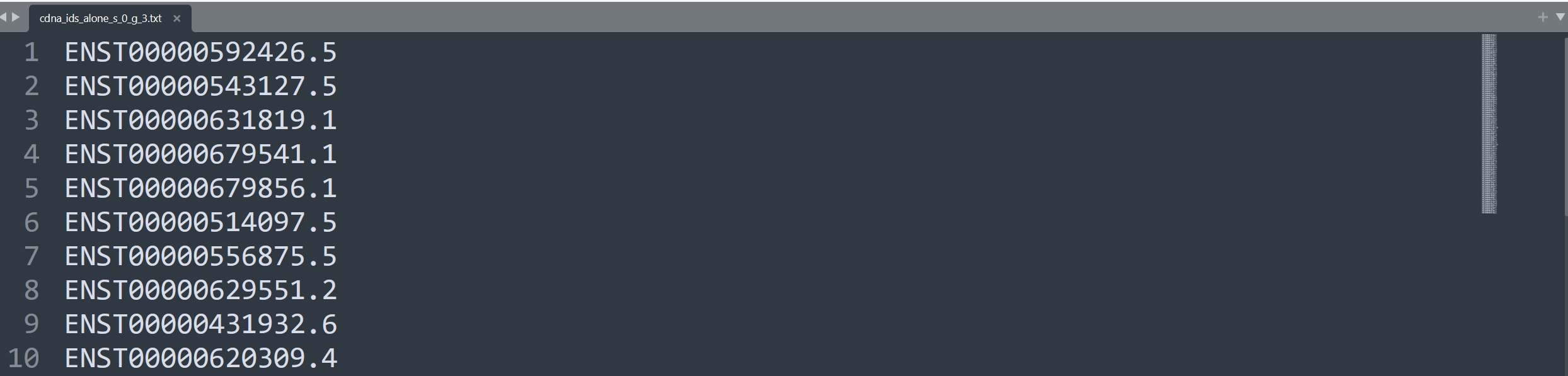

For sample 0, the chosen gene symbols of gene 3 are recorded, which correspond to the taken truncated sequences by order.

Image title
Fig 5. Seeds for simulating cDNAs

  1. Alemu Takele Assefa, Jo Vandesompele, Olivier Thas, SPsimSeq: semi-parametric simulation of bulk and single-cell RNA-sequencing data, Bioinformatics, Volume 36, Issue 10, May 2020, Pages 3276–3278, https://doi.org/10.1093/bioinformatics/btaa105 ↩
