2.2 Single locus

tresor.locus.library can be used to simulate substitutions, deletions, and insertions during bead synthesis in the context of a given genomic locus.

Usage

We use keywords bead_mut_rate, bead_del_rate, and bead_ins_rate to tell Tresor the error rates of substitutions, deletions, and insertions. They activate upon settingbead_mutation, bead_deletion, and bead_insertion as True. We highlight where the code works for this purpose in the tresor.locus.library command. There are a few studies in connection with synthesis error rates 1&2.

To show an observable change in the length of reads after applying indels, bead_ins_rate increases to 0.1 supposedly.

import tresor as ts

ts.locus.library(
    seq_num=50,
    len_params={
        'umi': {
            'umi_unit_pattern': 3,
            'umi_unit_len': 12,
        },
        'seq': 100,
    },
    seq_params={
        'custom': 'AAGC',  # BAGC
        'custom_1': 'V',
    },
    material_params={
        'fasta_cdna_fpn': to('data/Homo_sapiens.GRCh38.cdna.all.fa.gz'),  # None False
    },
    is_seed=True,

    working_dir=to('data/simu/docs/'),

    bead_mutation=True,  # True False
    bead_mut_rate=1e-4,  # 0.016 0.00004
    bead_deletion=True,  # True False
    bead_insertion=True,
    bead_del_rate=0.1,  # 0.016 0.00004, 2.4e-7
    bead_ins_rate=7.1e-7,  # 0.011 0.00001, 7.1e-7

    condis=['umi', 'custom', 'seq', 'custom_1'],
    sim_thres=3,
    permutation=0,

    mode='short_read',  # long_read short_read

    verbose=False,  # False True
)

1
2
3
4
5
6
7
8
9
tresor library_sl \
-cfpn ./tresor/data/libslocus.yml \
-snum 50 \
-permut 0 \
-sthres 3 \
-wd ./tresor/data/simu/ \
-md short_read \
-is True \
-vb True

Attributes

Illustration

Attribute Description
seq_num number of RNA molecules. 50 by default
len_params lengths of different components of a read
seq_params sequences of different components of a read, It allows users to add their customised sequences
material_params a Python dictionary. Showing if cDNA libraries are provided, please use key word fasta_cdna_fpn. The human cDNA library can be downloaded through the Ensembl genome database
is_seed if seeds are used to simulate sequencing libraries. This is designed to make in silico experiments reproducible
working_dir working directory where all simulation results are about to be saved
condis names of components that a read contains. It can contains an unlimited number of read components
sim_thres similarity threshold. 3 by default
permutation permutation times
bead_mutation if mutations are simutated during the period of building libraries. False by default
bead_mut_rate mutation rate. Workable when bead_mutation is set to True
bead_deletion if mutations are simutated during the period of building libraries. False by default
bead_del_rate deletion rate. Workable when bead_deletion is set to True.
bead_insertion if mutations are simutated during the period of building libraries. False by default
bead_ins_rate insertion rate. Workable when bead_insertion is set to True
mode long_read or short_read
verbose whether to print intermediate results
Attribute Description
cfpn location to the yaml configuration file. Users can specify the atrributes illustrated on the Python tab in the .yml file.
snum number of sequencing molecules
permut permutation times
sthres similarity threshold. 3 by default
wd working directory where all simulation results are about to be saved
md long_read or short_read mode
is if seeds are used to simulate sequencing libraries. This is designed for reproducible in silico experiments
vb whether to print intermediate results

```

Extension

Tip

We can flexibly design the structure of a read by adding different components to condis separated by comma. For example, there is an initial read containing only a UMI.

condis=['umi'],

Next, we can add a seq next to it.

condis=['umi', 'seq'],

If we have a read containing many bespoke parts, primer, primer_1, spacer, spacer_1, adapter, adapter_1,umi, umi_1, 'seq', and 'seq_2', we can set condis just as

condis=['umi', 'primer', 'primer_1', 'spacer', 'spacer_1', 'adapter', 'adapter_1', 'seq', 'seq_2', 'umi_1'],

Then, we can add the corresponding lengths of the parts/components in len_params as follows.

len_params={
    'umi': {
        'umi_unit_pattern': 3,
        'umi_unit_len': 12,
    },
    'umi_1': {
        'umi_unit_pattern': 3,
        'umi_unit_len': 12,
    },
    'seq': 100,
    'seq_2': 100,
    'adapter': 10,
    'adapter_1': 10,
    'primer': 10,
    'primer_1': 10,
    'spacer': 10,
    'spacer_1': 10,
},

If you have known sequences of some components in read 1, you can use seq_params to specify customed sequences. The following settings were used in our recently released biotechnology, anchor-enhanced technology, for elevating the discovery of long-reads. We placed an anchor sequence BAGC and a V base in between the read 1 sequence where B means any type of a base. Tresor was used for simulating reads with the two custom sequences placed as follows.

seq_params={
    'custom': 'AAGC',  # BAGC
    'custom_1': 'V',
},

Output

Console

17/07/2024 22:10:20 logger: Initialisation and parameters:
{'seq_params': {'custom': 'AAGC', 'custom_1': 'V'}, 'material_params': {'fasta_cdna_fpn': None}, 'mode': 'short_read', 'bead_mutation': True, 'bead_mut_rate': 0.0001, 'bead_deletion': True, 'bead_del_rate': 0.016, 'bead_insertion': True, 'bead_ins_rate': 0.1}
17/07/2024 22:10:20 logger: ======>Sequencing library preparation starts
17/07/2024 22:10:20 logger: ======>Condition map: {'umi': ['alone'], 'custom': ['alone', '1'], 'seq': ['alone']}
17/07/2024 22:10:20 logger: ======>Read 1 generation
17/07/2024 22:10:20 logger: =========>UMI generation start
17/07/2024 22:10:20 logger: ============>UMI condition 0: umi
17/07/2024 22:10:20 logger: =========>Sequence generation start
17/07/2024 22:10:20 logger: ============>Sequence condition 0: seq
17/07/2024 22:10:20 logger: ============>Custom-designed condition 0: custom
17/07/2024 22:10:20 logger: ============>Custom-designed condition 1: custom_1
17/07/2024 22:10:20 logger: ======>Read 2 generation
17/07/2024 22:10:20 logger: =========>UMI generation start
17/07/2024 22:10:20 logger: ============>UMI condition 0: umi
17/07/2024 22:10:20 logger: =========>Sequence generation start
17/07/2024 22:10:20 logger: ============>Sequence condition 0: seq
17/07/2024 22:10:20 logger: ============>Custom-designed condition 0: custom
17/07/2024 22:10:20 logger: ============>Custom-designed condition 1: custom_1
17/07/2024 22:10:20 logger: ======>Read 3 generation
17/07/2024 22:10:20 logger: =========>UMI generation start
17/07/2024 22:10:20 logger: ============>UMI condition 0: umi
17/07/2024 22:10:20 logger: =========>Sequence generation start
17/07/2024 22:10:20 logger: ============>Sequence condition 0: seq
17/07/2024 22:10:20 logger: ============>Custom-designed condition 0: custom
17/07/2024 22:10:20 logger: ============>Custom-designed condition 1: custom_1

...

17/07/2024 22:10:20 logger: ======>Read 49 generation
17/07/2024 22:10:20 logger: =========>UMI generation start
17/07/2024 22:10:20 logger: ============>UMI condition 0: umi
17/07/2024 22:10:20 logger: =========>Sequence generation start
17/07/2024 22:10:20 logger: ============>Sequence condition 0: seq
17/07/2024 22:10:20 logger: ============>Custom-designed condition 0: custom
17/07/2024 22:10:20 logger: ============>Custom-designed condition 1: custom_1
17/07/2024 22:10:20 logger: ======>Read 50 generation
17/07/2024 22:10:20 logger: =========>UMI generation start
17/07/2024 22:10:20 logger: ============>UMI condition 0: umi
17/07/2024 22:10:20 logger: =========>Sequence generation start
17/07/2024 22:10:20 logger: ============>Sequence condition 0: seq
17/07/2024 22:10:20 logger: ============>Custom-designed condition 0: custom
17/07/2024 22:10:20 logger: ============>Custom-designed condition 1: custom_1
17/07/2024 22:10:20 logger: ===>Time for sequencing library preparation: 0.200s

Understanding files

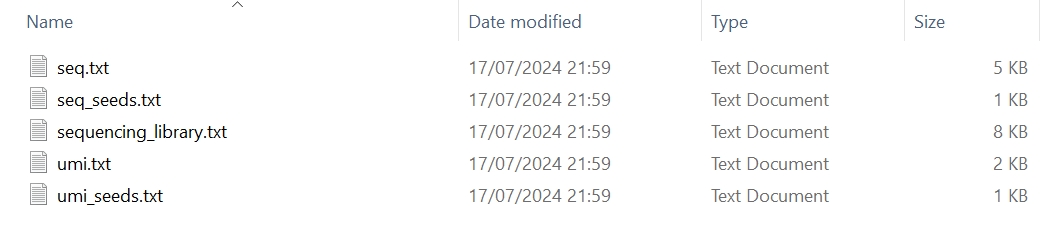

The resultant files of the simulated sequencing library are shown in the following picture. The cDNA library for reference is not used. Randomly simulating reads is enabled.

Image title
Fig 1. Generated files of a sequencing library

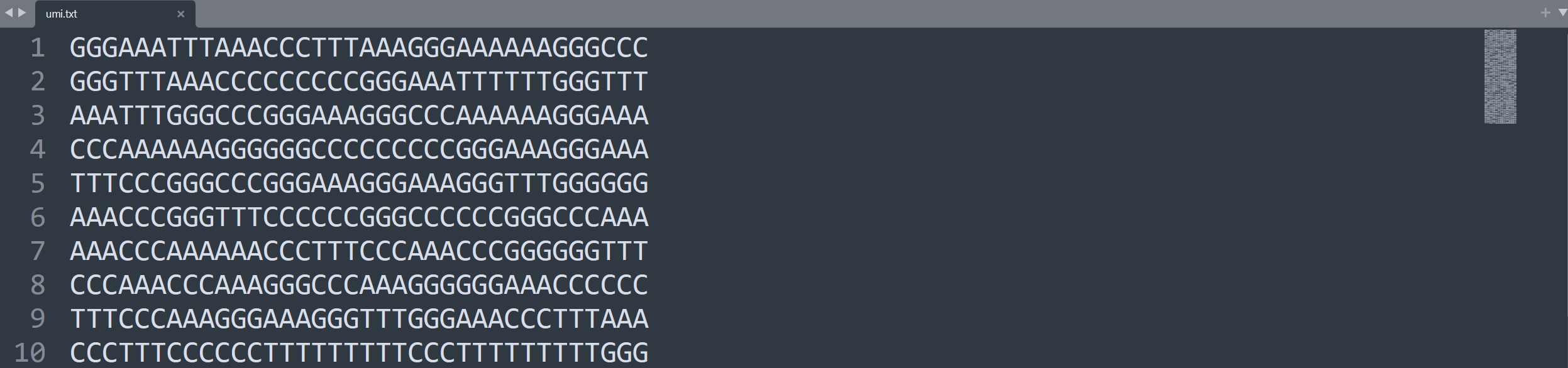

In this case, we used homotrimer blocks to simulate UMIs where the length of each UMI is set to be 36 containing 12 trimer blocks.

Image title
Fig 2. Simulated UMIs

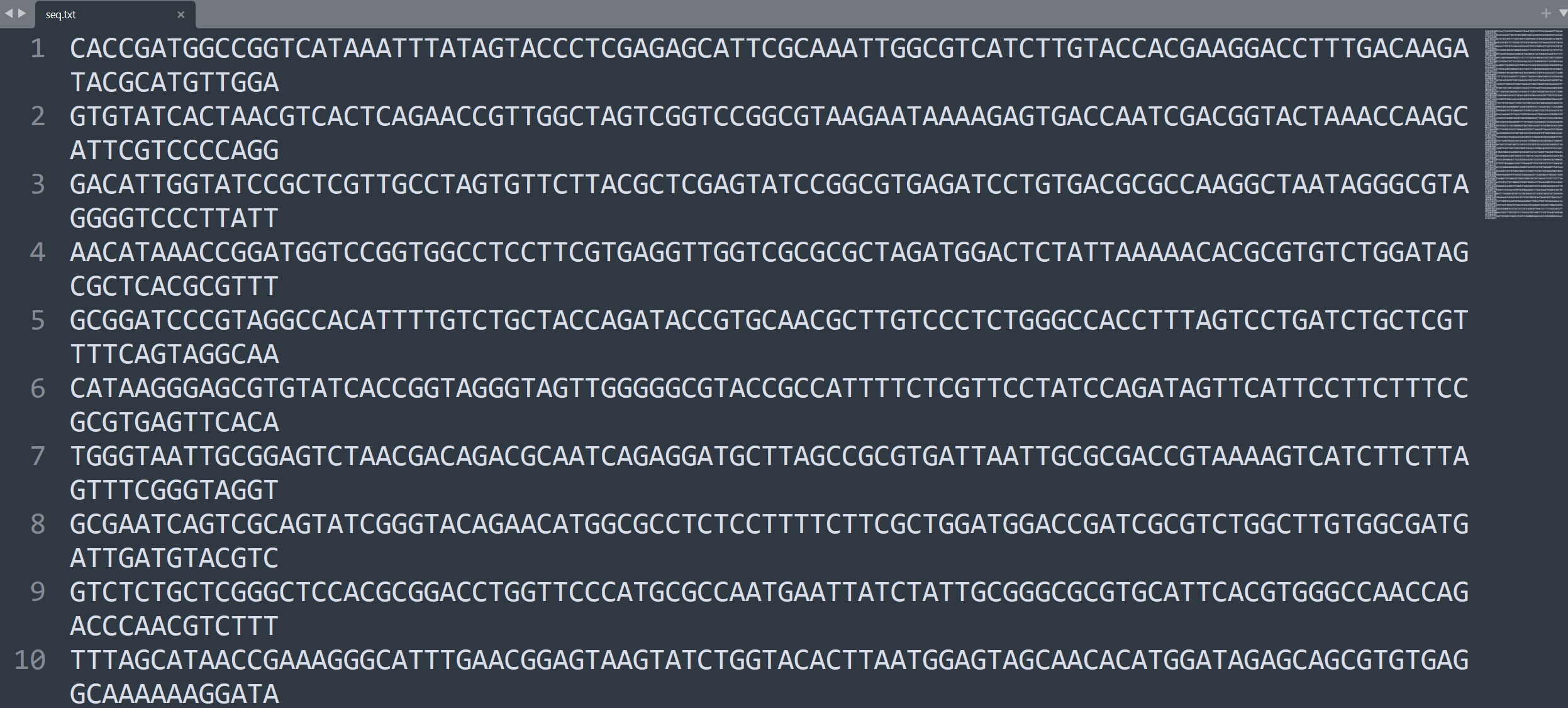

The sequences are randomly chosen from the input human cDNAs and truncated according to the length of each short read.

Image title
Fig 3. Simulated genomics sequences

The sequencing library is tabulated to a dataframe. Each row shows the necessary information about the read 1

  1. Sequence
  2. Identifier
  3. Source

Init means a read 1 is a sequence from the sequencing library, to differ from those from PCR amplification.

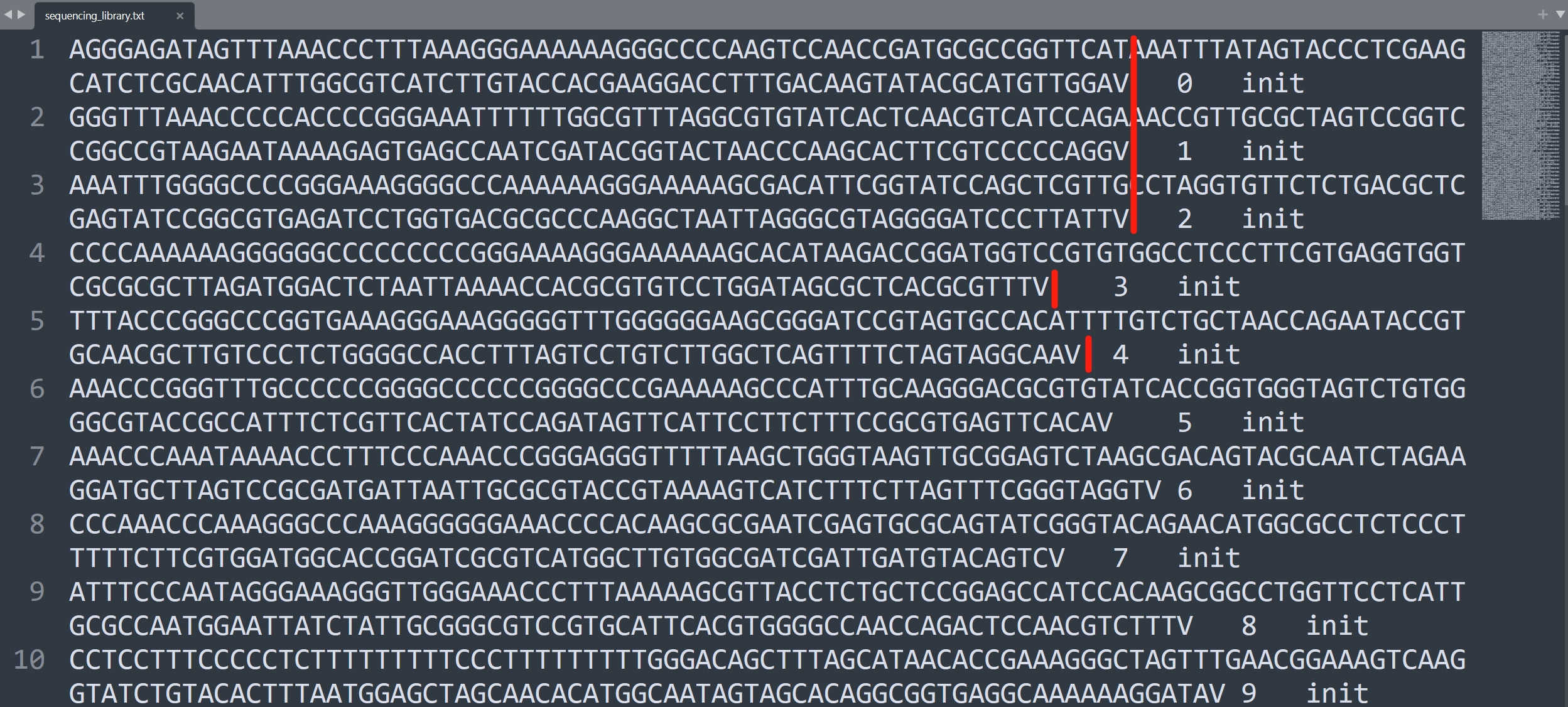

Here, we can see a clear difference in the length of simulated reads. Most of reads have increased because of a high insertion rate is set to test the function.
Image title
Fig 4. Simulated sequencing library

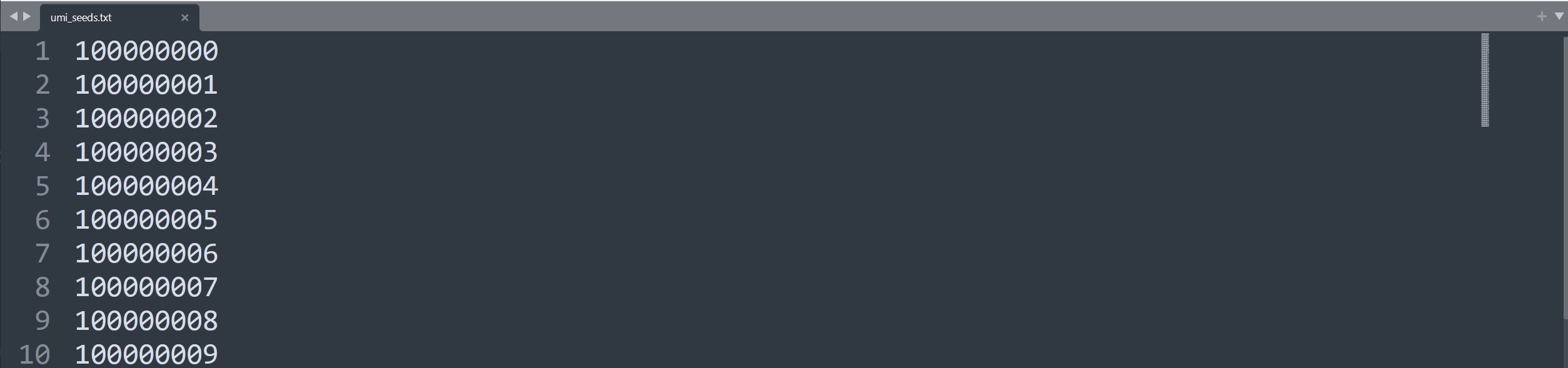

We set a big integer as an initial seed to sequentially simulate each UMI sequence. Then, users can use the saved seeds to reproduce the experiment.

Image title
Fig 5. Seeds for simulating UMIs

Seeds used for simulating genomic sequences are recorded.

Image title
Fig 6. Seeds for simulating sequences

  1. Potapov V, Ong JL (2017) Examining Sources of Error in PCR by Single-Molecule Sequencing. PLOS ONE 12(1): e0169774. https://doi.org/10.1371/journal.pone.0169774 ↩

  2. Mitchell, K., Brito, J.J., Mandric, I. et al. Benchmarking of computational error-correction methods for next-generation sequencing data. Genome Biol 21, 71 (2020). https://doi.org/10.1186/s13059-020-01988-3 ↩
