1. UMI trajectory¶
The uc.pipeline.heterogeneity function allows us to research trajectories of UMIs across PCR amplification cycles.
Motivation
To merge UMI nodes, the UMI-tools' Directional method launches a series of directed visits from a UMI node with the highest count to UMIs with a lower count. Ideally, when a node attempts to merge a neighbouring node into a cluster, reads attached with the two UMIs are derived from the same original molecule.
This can help understand if any two merged UMIs in a UMI graph (for deduplication) have the same origin.

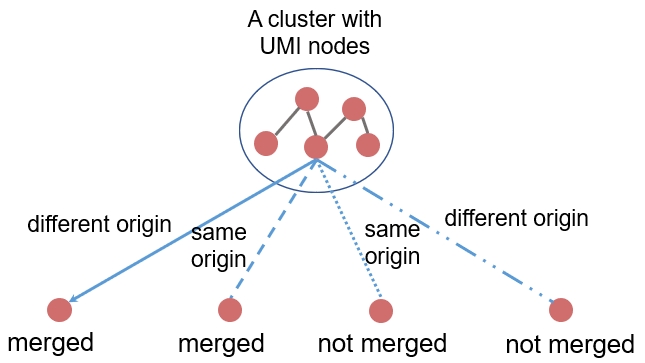

To gain an understanding of whether the directed visits in the directional method are beneficial to merge UMIs from the same origin, we labelled each amplified read the identifier of its original molecule to keep track of the source during the read simulation process. There are 4 possible situations, UMIs that are merged and derived from the same origin, UMIs that are merged but derived from a different origin, UMIs that are not merged but derived from the same origin, and UMIs that are not merged and derived from a different origin.
Tip
Annotating UMIs with their origin is conducive to study their connectivity in a network in which a merge indicates an estimated association between two UMIs.
To generate the relationship between UMIs from any two adjacent PCR cycles, we can use the code below.
Python
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 | |
2. Spell-out¶
The UMIche's pipeline is designed to work on top of the output from Tresor. Thus, we might need to run the heterogeneity pipeline with raw FastQ reads. The UMI sequences are tagged with 3'/5' end of reads. The first thing we need to do is to extract UMI sequences and typically append them to the end of the name of each FastQ read. To do so, we need to set the following parameters and run the uc.pipeline.heterogeneity command.
is_trim=True,
is_tobam=False,
is_dedup=False,
Then, because the format of input to mclUMI is BAM, we need to convert the FastQ file to a BAM file. Please note that this is not to map reads to a genome but is simply a conversion from FastQ to BAM. To do so, we need to claim the following parameters and re-run the uc.pipeline.heterogeneity command.
is_trim=False,
is_tobam=True,
is_dedup=False,
Please notice that if you have mapped reads in BAM, you can omit this step.
Then, we re-run the uc.pipeline.heterogeneity command to mute is_trim and is_dedup, but open the deduplication channel with is_dedup=True. We can see the following output if we conduct the deduplication on simulated reads from two rounds of permutation tests. But if we set verbose=True, we will be prompted with more output in the console.
Output
29/07/2024 23:47:04 logger: ======>key 1: work_dir
29/07/2024 23:47:04 logger: =========>value: /mnt/d/Document/Programming/Python/umiche/umiche/data/simu/mclumi/
29/07/2024 23:47:04 logger: ======>key 2: trimmed
29/07/2024 23:47:04 logger: =========>value: {'fastq': {'fpn': 'None', 'trimmed_fpn': 'None'}, 'umi_1': {'len': 10}, 'seq': {'len': 100}, 'read_struct': 'umi_1'}
29/07/2024 23:47:04 logger: ======>key 3: fixed
29/07/2024 23:47:04 logger: =========>value: {'pcr_num': 8, 'pcr_err': 1e-05, 'seq_err': 0.001, 'ampl_rate': 0.85, 'seq_dep': 400, 'umi_num': 50, 'permutation_num': 2, 'umi_unit_pattern': 1, 'umi_unit_len': 10, 'seq_sub_spl_rate': 0.333, 'sim_thres': 3}
29/07/2024 23:47:04 logger: ======>key 4: varied
29/07/2024 23:47:04 logger: =========>value: {'pcr_nums': [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16], 'pcr_errs': [1e-05, 2.5e-05, 5e-05, 7.5e-05, 0.0001, 0.00025, 0.0005, 0.00075, 0.001, 0.0025, 0.005, 0.0075, 0.01, 0.05], 'seq_errs': [1e-05, 2.5e-05, 5e-05, 7.5e-05, 0.0001, 0.00025, 0.0005, 0.00075, 0.001, 0.0025, 0.005, 0.0075, 0.01, 0.025, 0.05], 'ampl_rates': [0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0], 'umi_lens': [6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18], 'umi_nums': [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45], 'seq_deps': [100, 200, 500, 600, 800, 1000, 2000, 3000, 5000]}
29/07/2024 23:47:04 logger: ======>key 5: dedup
29/07/2024 23:47:04 logger: =========>value: {'dbscan_eps': 1.5, 'dbscan_min_spl': 1, 'birch_thres': 1.8, 'birch_n_clusters': 'None', 'hdbscan_min_spl': 3, 'aprop_preference': 'None', 'aprop_random_state': 0, 'ed_thres': 1, 'mcl_fold_thres': 1.6, 'iter_num': 100, 'inflat_val': 2.7, 'exp_val': 2}
===>dedup method: directional
===>No.0 permutation
No.0->1e-05 for seq_errs dedup cnt: 50
No.1->2.5e-05 for seq_errs dedup cnt: 50
No.2->5e-05 for seq_errs dedup cnt: 50
No.3->7.5e-05 for seq_errs dedup cnt: 50
No.4->0.0001 for seq_errs dedup cnt: 50
No.5->0.00025 for seq_errs dedup cnt: 50
No.6->0.0005 for seq_errs dedup cnt: 50
No.7->0.00075 for seq_errs dedup cnt: 50
No.8->0.001 for seq_errs dedup cnt: 51
No.9->0.0025 for seq_errs dedup cnt: 52
No.10->0.005 for seq_errs dedup cnt: 54
No.11->0.0075 for seq_errs dedup cnt: 63
No.12->0.01 for seq_errs dedup cnt: 70
No.13->0.025 for seq_errs dedup cnt: 89
No.14->0.05 for seq_errs dedup cnt: 150
pn0
0 50
1 50
2 50
3 50
4 50
5 50
6 50
7 50
8 51
9 52
10 54
11 63
12 70
13 89
14 150
===>No.1 permutation
No.0->1e-05 for seq_errs dedup cnt: 50
No.1->2.5e-05 for seq_errs dedup cnt: 50
No.2->5e-05 for seq_errs dedup cnt: 50
No.3->7.5e-05 for seq_errs dedup cnt: 50
No.4->0.0001 for seq_errs dedup cnt: 50
No.5->0.00025 for seq_errs dedup cnt: 50
No.6->0.0005 for seq_errs dedup cnt: 50
No.7->0.00075 for seq_errs dedup cnt: 50
No.8->0.001 for seq_errs dedup cnt: 51
No.9->0.0025 for seq_errs dedup cnt: 53
No.10->0.005 for seq_errs dedup cnt: 53
No.11->0.0075 for seq_errs dedup cnt: 65
No.12->0.01 for seq_errs dedup cnt: 70
No.13->0.025 for seq_errs dedup cnt: 89
No.14->0.05 for seq_errs dedup cnt: 134
pn0 pn1
0 50 50
1 50 50
2 50 50
3 50 50
4 50 50
5 50 50
6 50 50
7 50 50
8 51 51
9 52 53
10 54 53
11 63 65
12 70 70
13 89 89
14 150 134

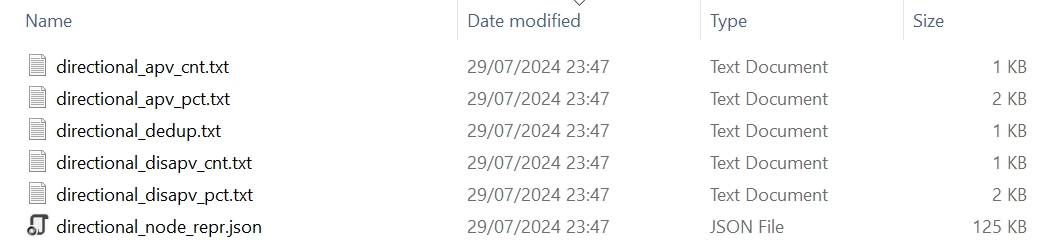

3. Generated files¶
