Homotrimer umi error proba analysis

The uc.plot.prob_correct and uc.plot.prob_incorrect functions allows you to plot the probability of correct and incorrect synthesis of homotrimer building blocks and full sequences across varying error rates. Please see this section for details.

  1. correct synthesis of a homotrimer building block (num_nt=1)
import numpy as np

error_rates= np.linspace(0.00001, 0.5, 500)

uc.plot.prob_correct(error_rate=error_rates, num_nt=1)
Image title

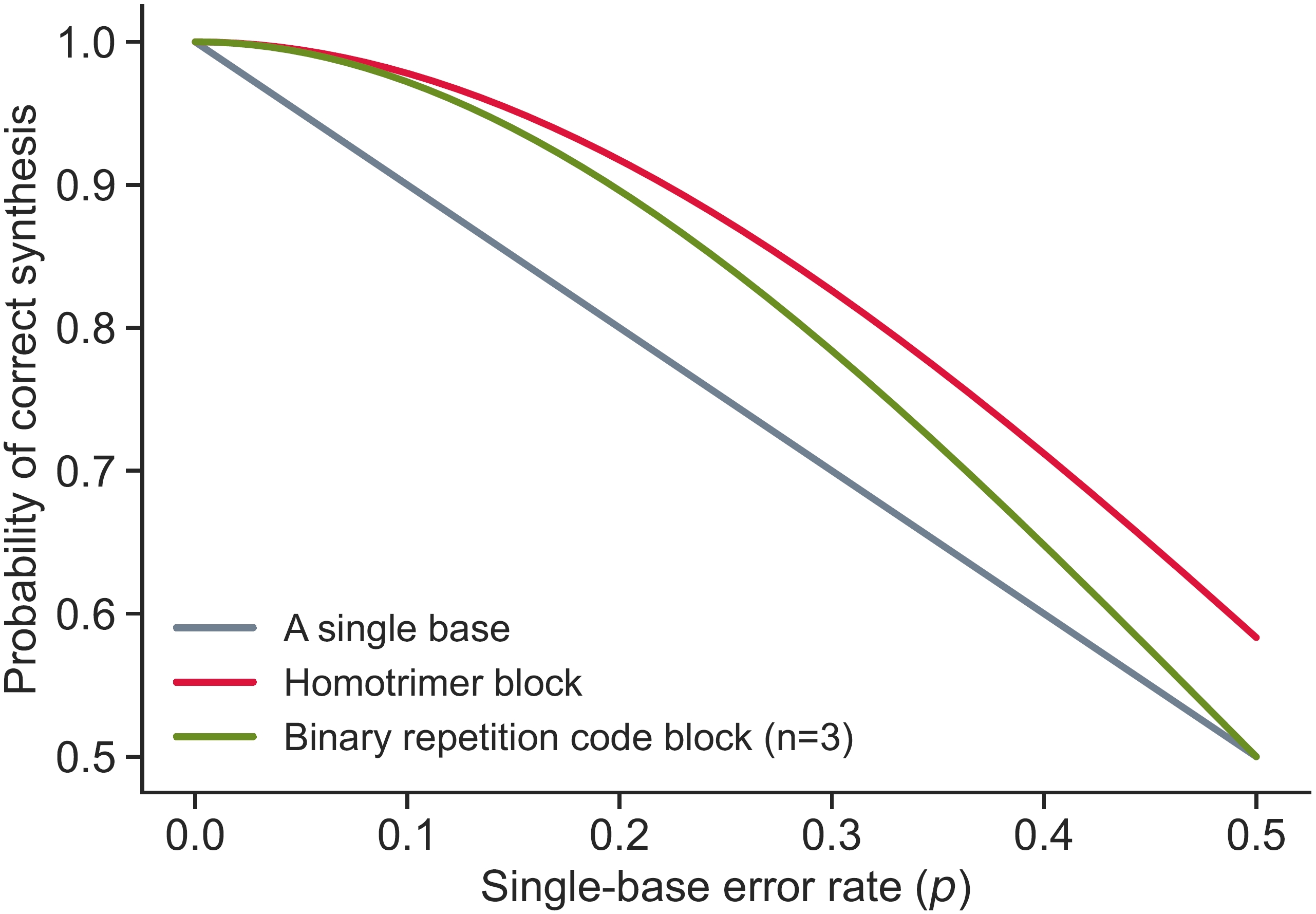

Fig 1. Probability of correct synthesis for a single nucleotide, a binary repetition code block of 3 bits, and a homotrimer block as a function of a single-base error rate 𝑝.
  1. incorrect synthesis of a whole sequence (num_nt=12)
uc.plot.prob_incorrect(error_rate=error_rates, num_nt=12)
Image title

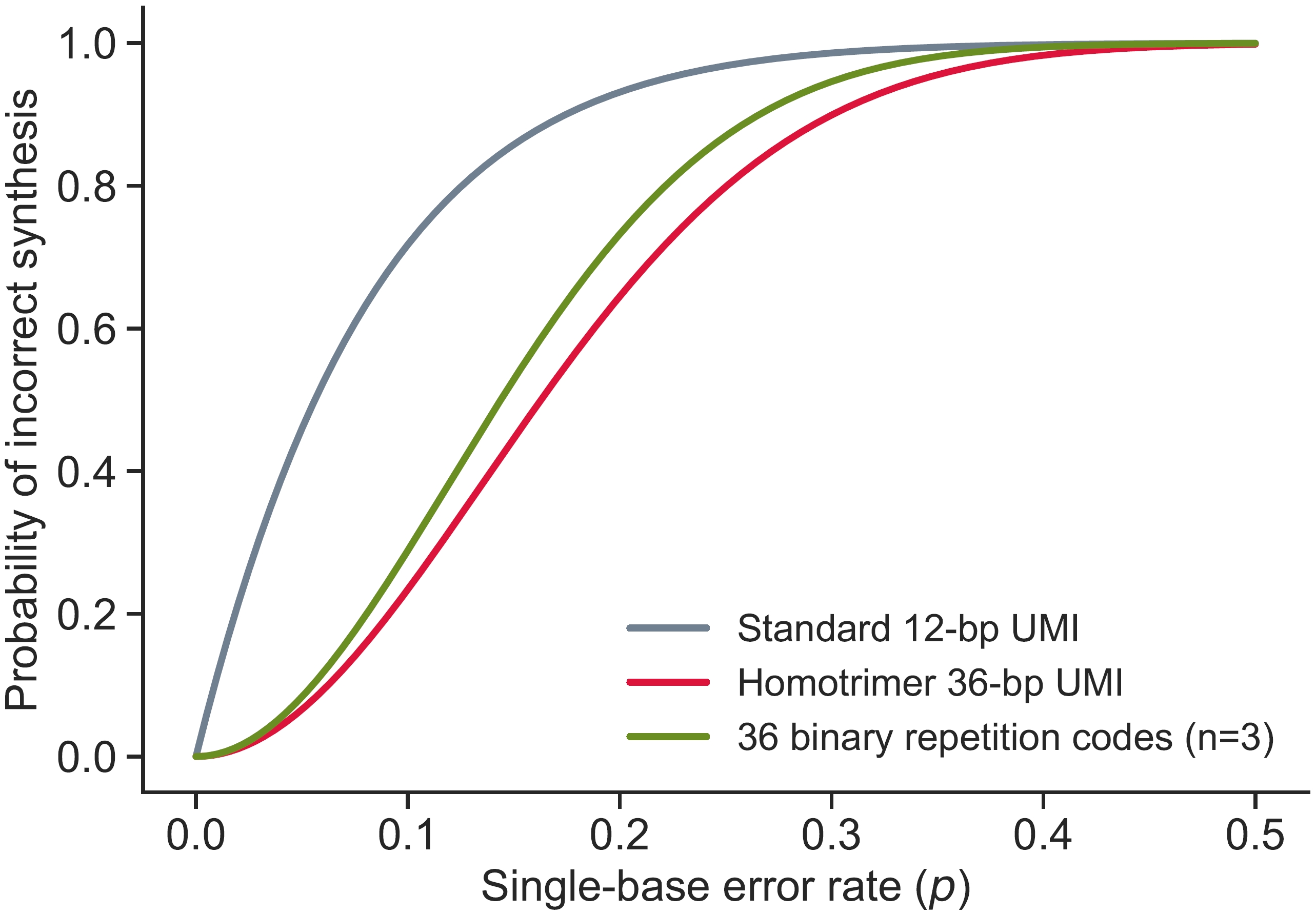

Fig 2. Probability of incorrect synthesis for a 12-bp standard UMI, a 36-bit binary (3, 1) repetition code, and a 36-bp homotrimer UMI.
